Authorized Goldfinger distributor 2 configurations

Goldfinger 10.1-Inch PCAP Button Deck with Halo Lamps

10.1-inch PCAP button deck, two buttons, halo lamps, 1920 by 1200. Item 400210 is the priced row.

From $510

Price shown is the price you pay — no quote form.



  • 3-year manufacturer warranty from Goldfinger
  • 30-day returns — no questions asked
  • Out-of-warranty repair at $65 labor plus parts
  • Replacement parts in stock
  • Mon–Fri, 9am–5pm ET · (877) 922-6707

About the Goldfinger 10.1-Inch PCAP Button Deck with Halo Lamps

This is a button deck, not the 10-inch infrared monitor. The diagonal is 10.1 inches. Touch is PCAP. The halo lamp cell says yes. Button configuration is two buttons. Item 400210 is the priced PCAP deck with lamps. Item 200410 is the two-button PCAP deck with lamps on a standard panel and has no retail price.

The table lists resolution 1920 by 1200, brightness minimum 320 and typical 380 cd/m2, contrast minimum 600:1 and typical 800:1, viewing minimum plus or minus 80 degrees and typical plus or minus 89 degrees. Life is 50,000+ hours. Operating range is -10 C to +60 C. Ports are HDMI and USB-A. Warranty is three years. Those cells are the deck's own table; the 10-inch infrared page does not share them.

Order 400210 when you need the priced deck. Name 200410 only when the standard-panel row is intentional. The halo is on the spec table for this product, not a separate rear-lamp kit. Three-year coverage is Goldfinger's manufacturer warranty. A deck outside that warranty is $65 labor plus parts. The two-button count is the configuration to confirm against the cabinet art before the overlay is printed. Halo lamps are in the spec cell for the deck itself, so do not add the rear-firing Pixel kit to a 10.1-inch button order. Typical brightness is 380 cd/m2 and the minimum cell is 320, which is the pair of figures to put on a lighting drawing. Operating temperature reaches -10 C on this deck, a figure that is not copied onto the 10-inch infrared monitor page.

Configurations and prices

Goldfinger 10.1-Inch PCAP Button Deck with Halo Lamps configurations, item numbers and prices
Item #Configuration FramePrice Order
40021010.1" Button Deck PCAP, LED LightsExtruded frame, LED halo$510Order by phone
20041010.1" Button Deck, 2 Buttons, PCAP Touch, LED LightsStandard panelCall for pricingGet a price

Buy Now opens the same item on our store, BillAcceptors.us, at the same price. Configurations without a listed price are stocked to order — call (877) 922-6707. Every new unit is covered by our 30-day, no-questions-asked return policy.

Specifications

Goldfinger 10.1-Inch PCAP Button Deck with Halo Lamps specifications
Display Size10.1" Diagonal
Resolution1920 x 1200
BrightnessMin 320; Typ 380 cd/m²
Contrast RatioMin 600:1; Typ 800:1
Viewing AngleMin ±80°; Typ ±89°
Touch TechnologyProjected Capacitive (PCAP)
LED HaloYes
Button Configuration2 Buttons
Operating Life50,000+ hours
Operating Temp.-10°C - +60°C
ConnectivityHDMI, USB-A
Warranty3 Years

Specifications are Goldfinger’s published figures for this family. Individual item numbers vary by frame, flange and touch type — see the configuration table above.

More views

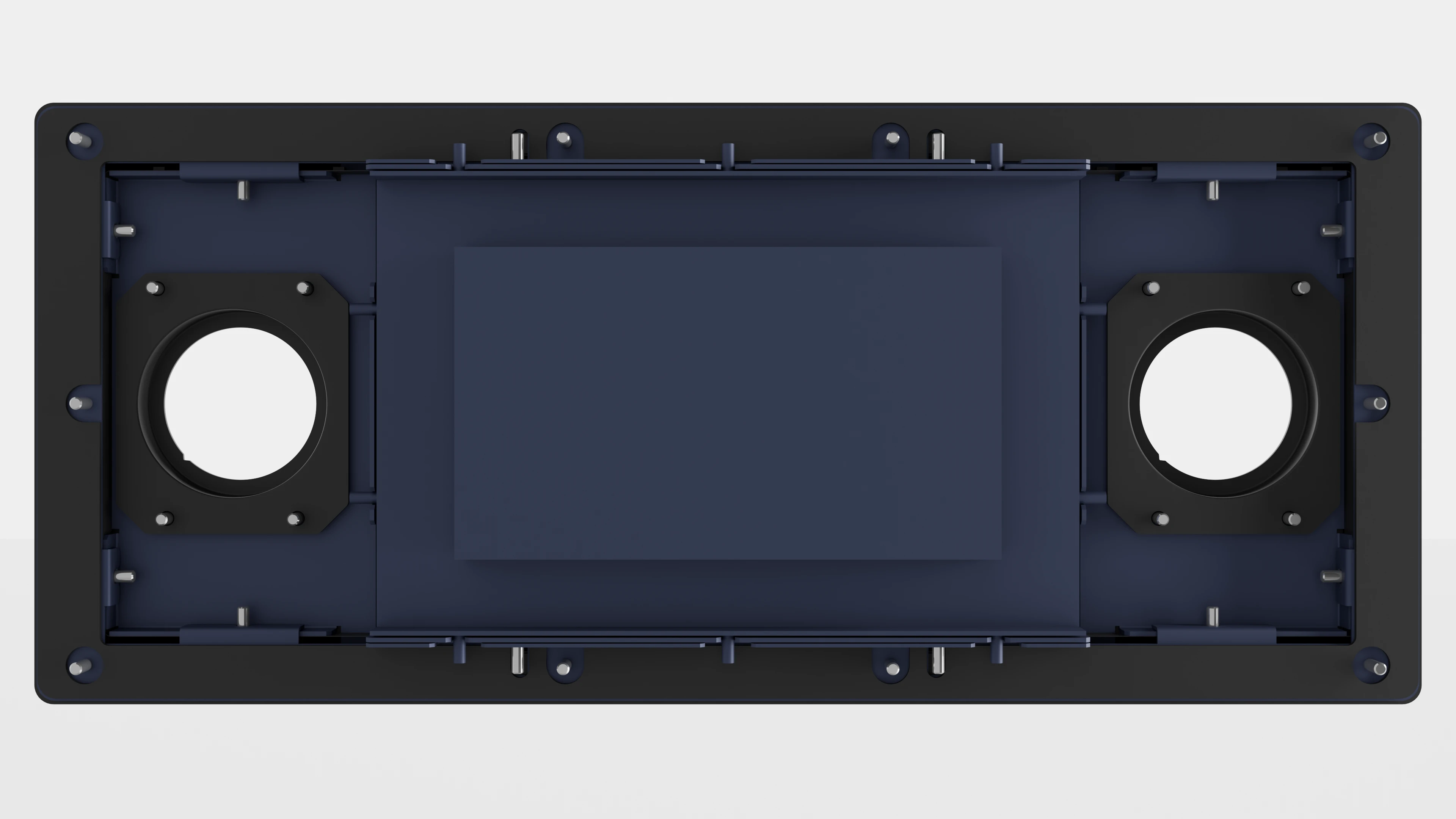

Rear of the 10.1-inch button deck

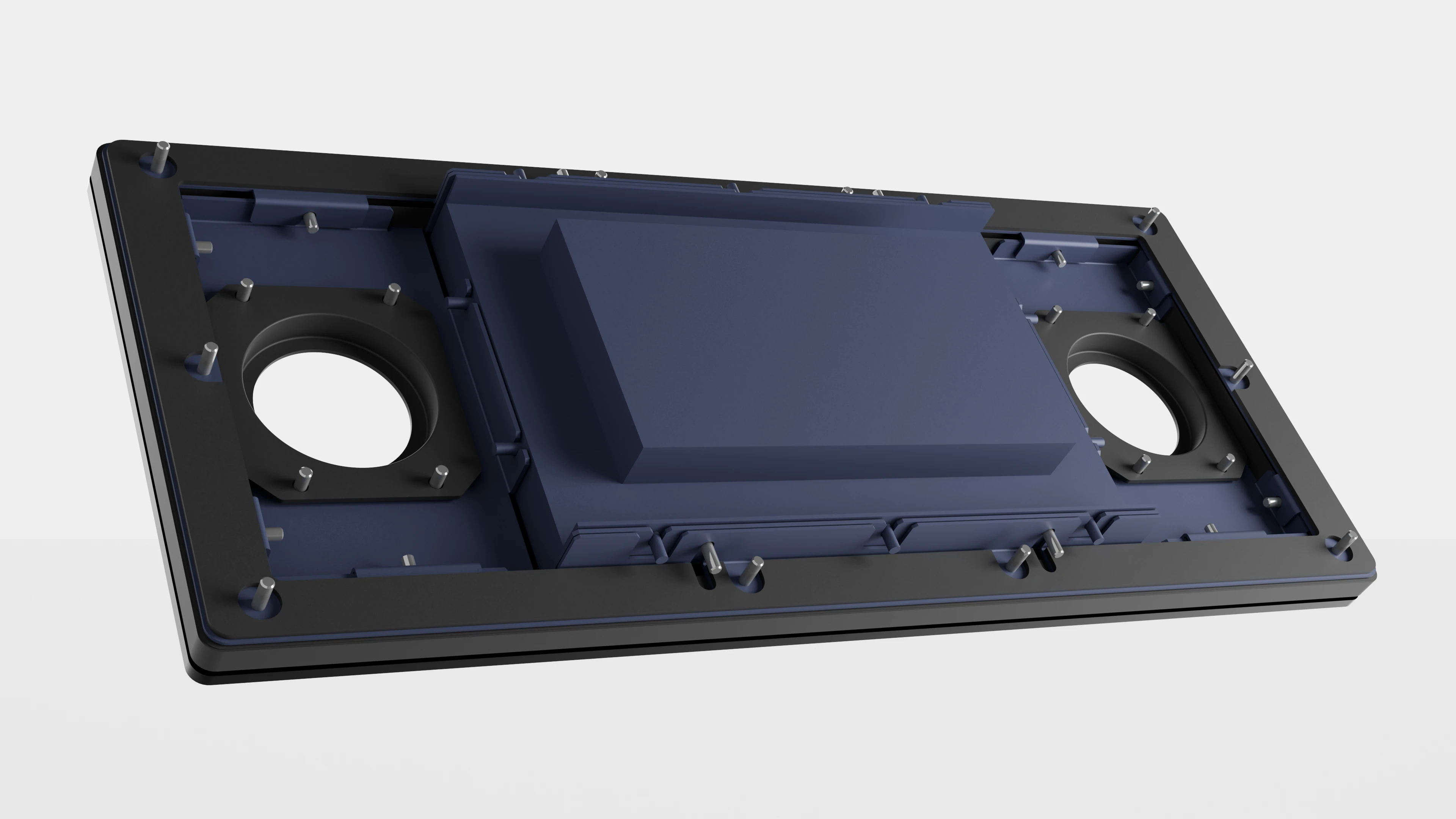

Three-quarter rear of the 10.1-inch button deck and its shallow box

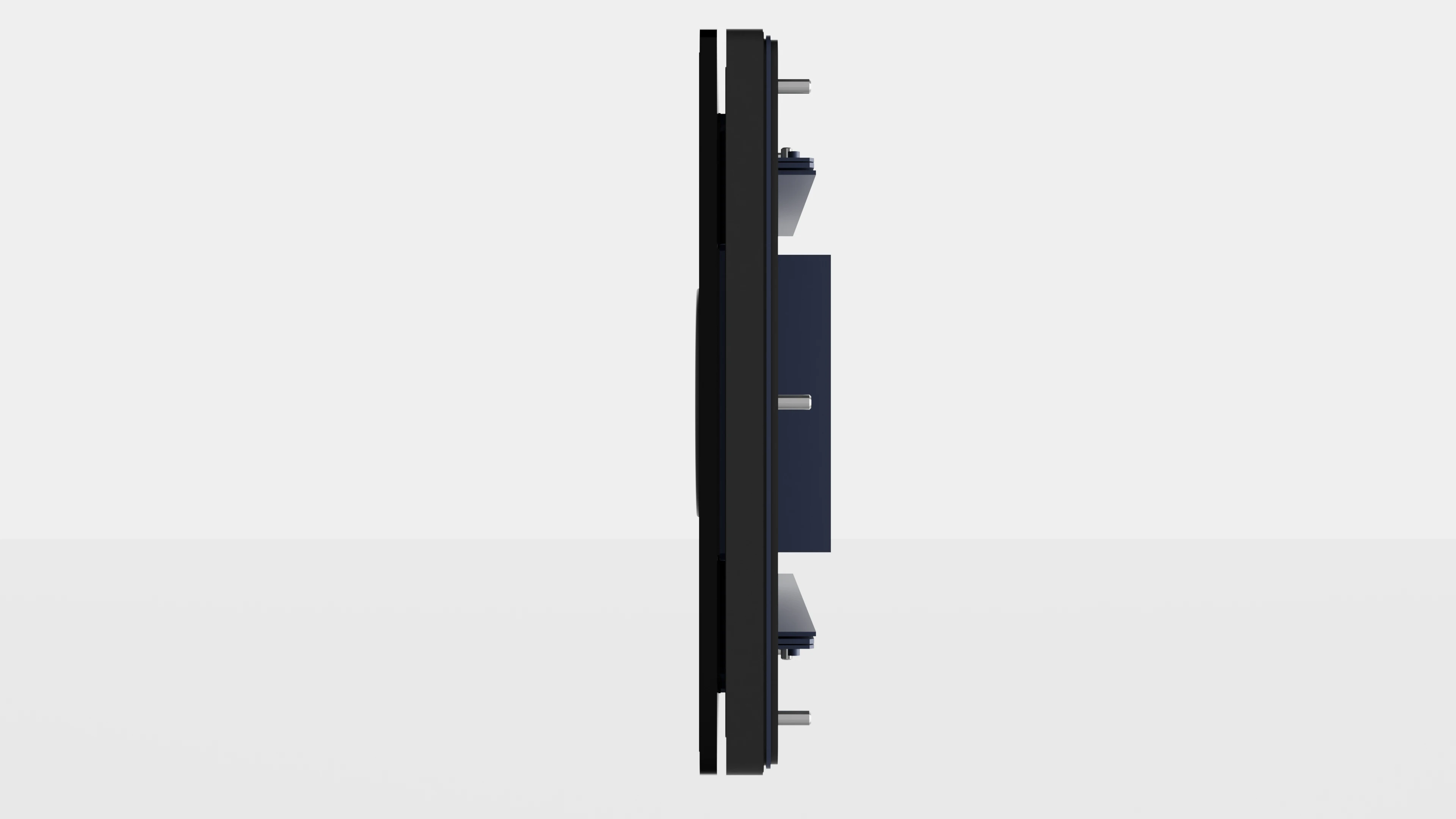

Side of the 10.1-inch button deck showing the button overhang

Already own a Goldfinger 10.1-Inch PCAP Button Deck with Halo Lamps?

We repair Goldfinger monitors that are out of warranty at $65 labor plus parts, and stock the replacement parts. Call (877) 922-6707.
