Goldfinger 22-Inch Class Touchscreens (21.5-Inch Panel)
21.5-inch panel marketed as 22-inch. PCAP rows 401271 and 401272 are the buy-button items.

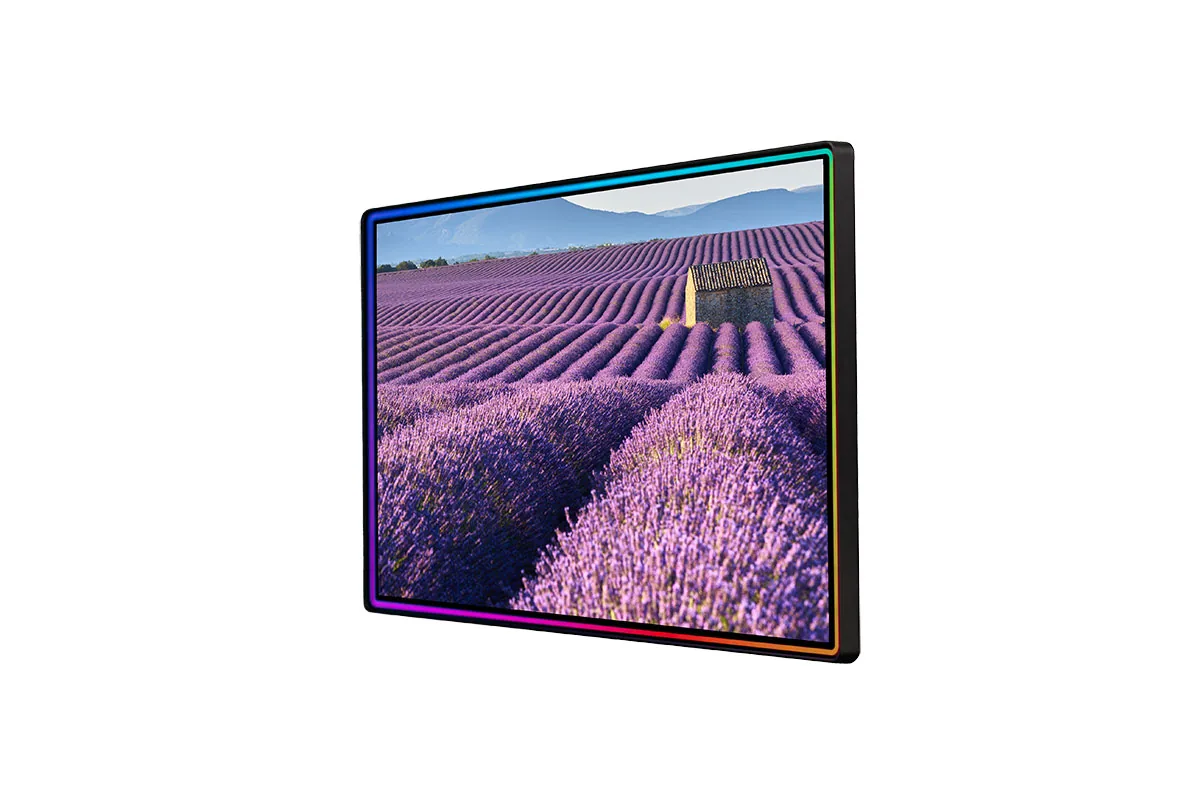

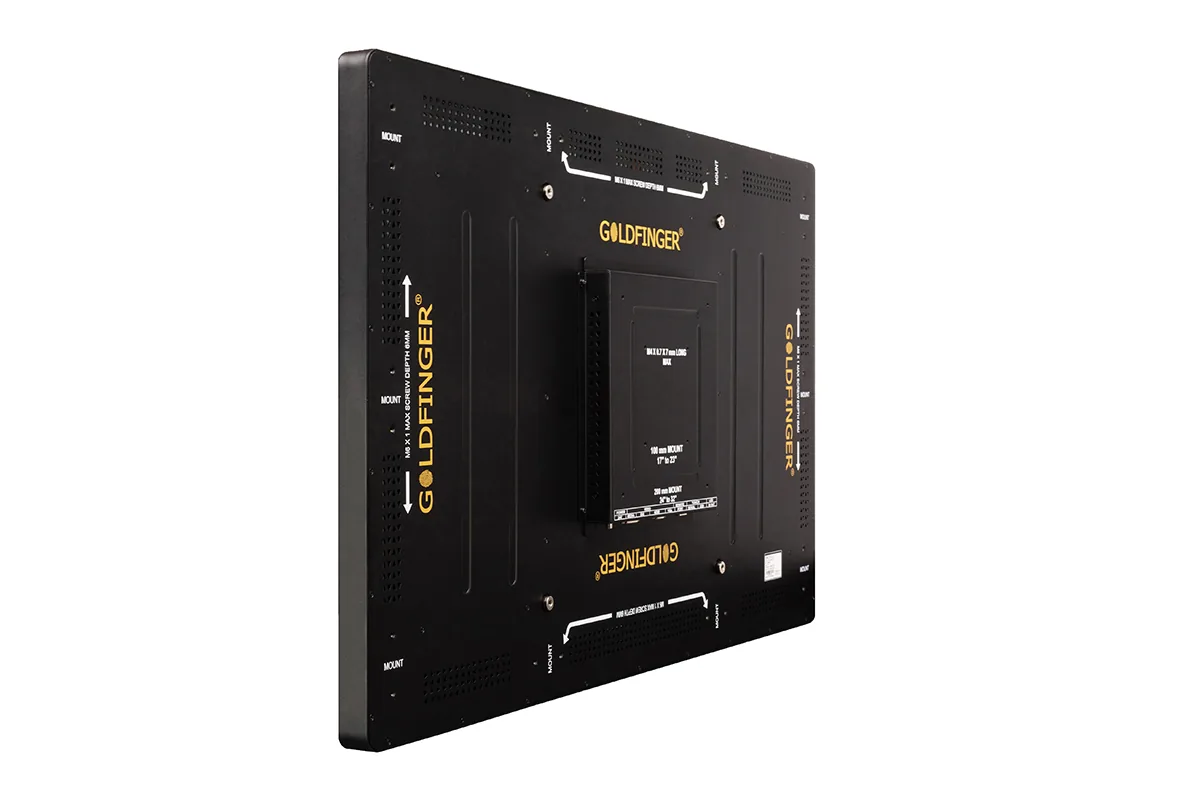

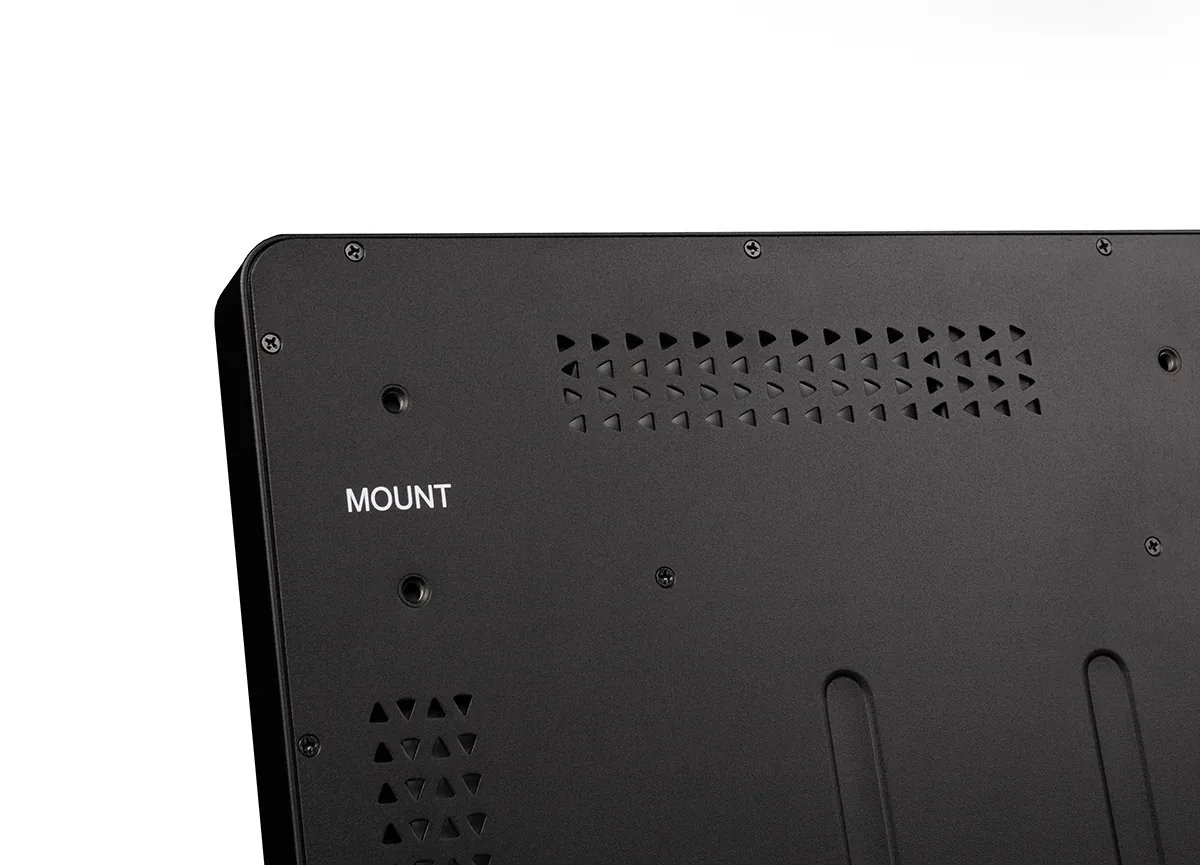

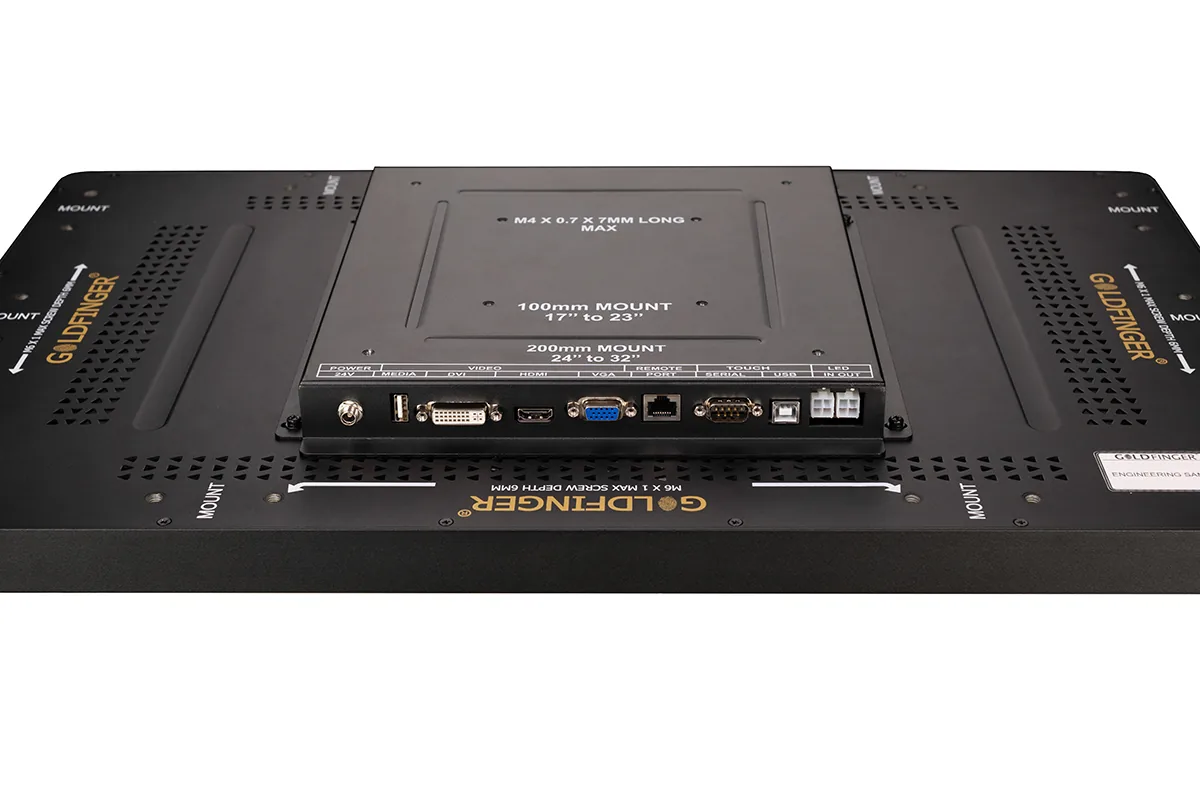

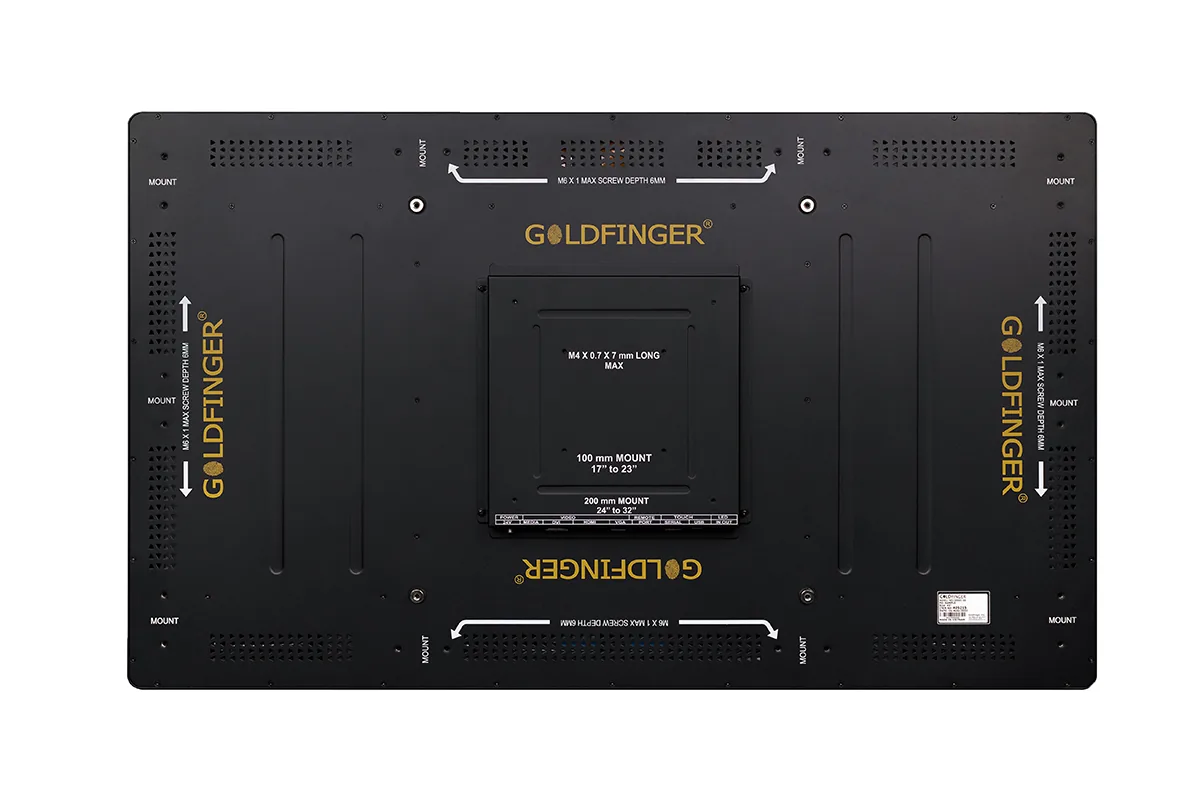

Product views — 9 photos

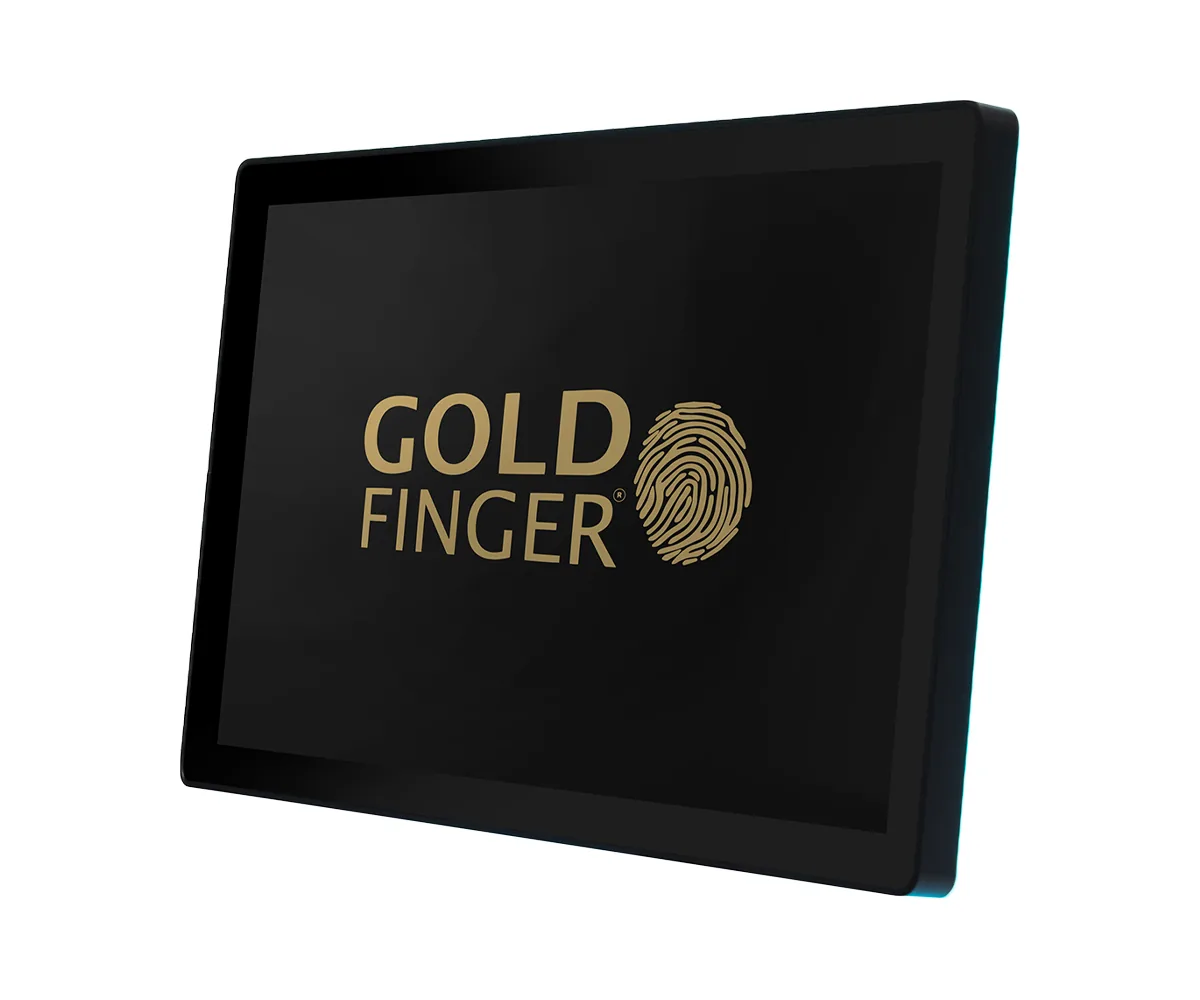

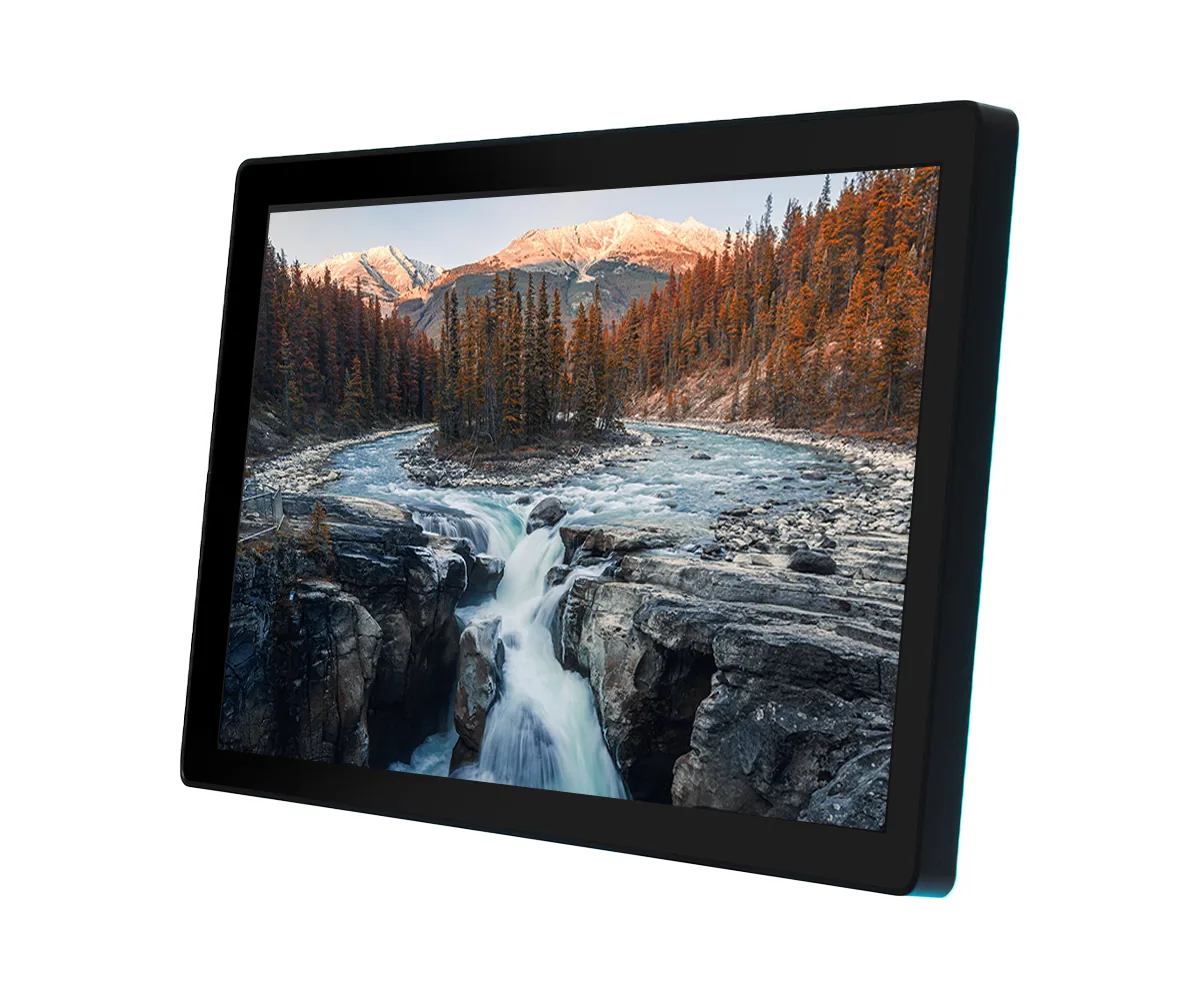

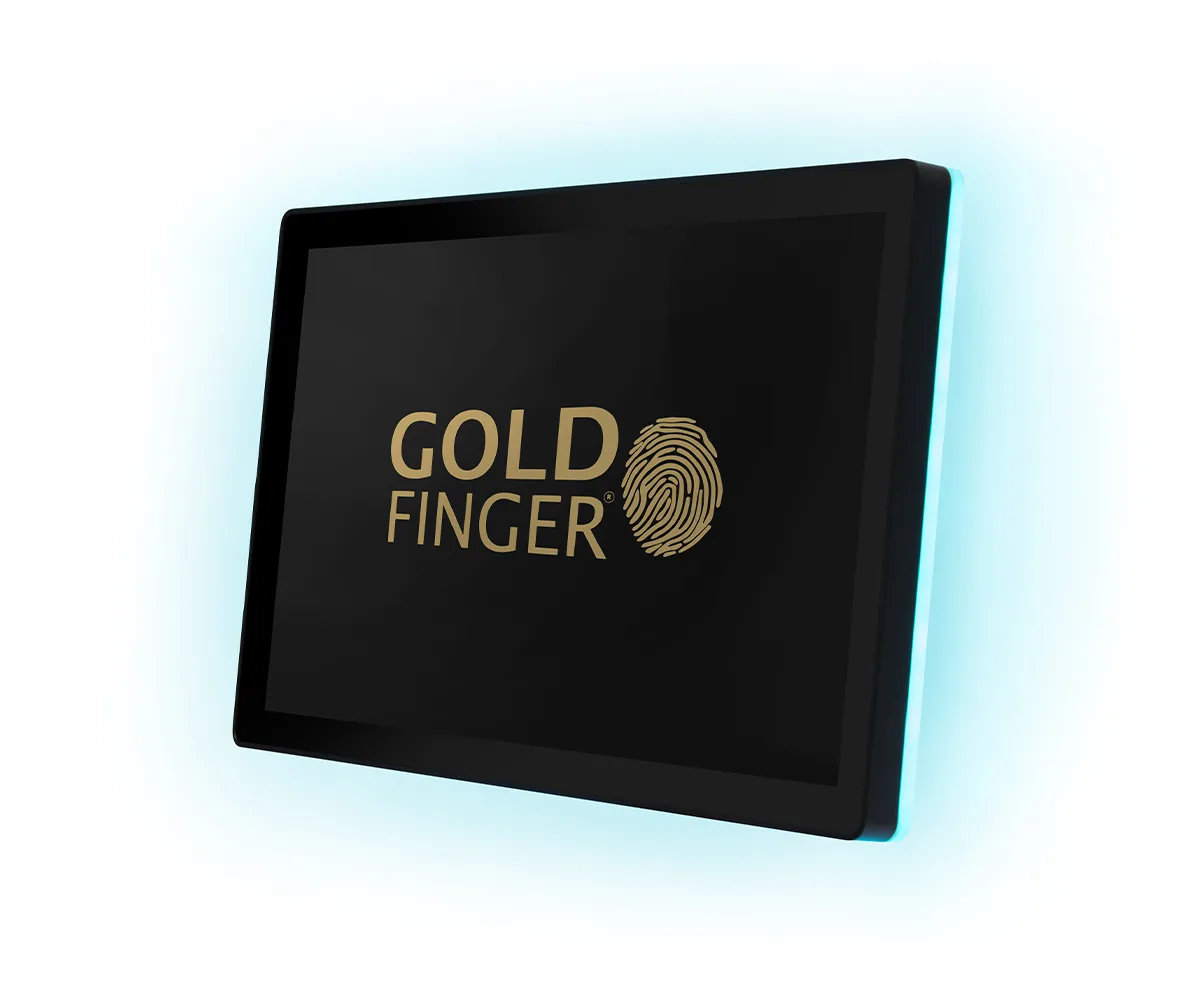

Pixel Kiosk series — 4 photos
From $449
Price shown is the price you pay — no quote form.
- 3-year manufacturer warranty from Goldfinger
- 30-day returns — no questions asked
- Out-of-warranty repair at $65 labor plus parts
- Replacement parts in stock
- Mon–Fri, 9am–5pm ET · (877) 922-6707
About the Goldfinger 22-Inch Class Touchscreens (21.5-Inch Panel)
The spec table names this panel directly: 21.5-inch diagonal, marketed as 22-inch. Quote it that way. Priced rows a buyer can press today are 401271 (PCAP, no bezel, #27 flange, no lamp button) and 401272 (PCAP with lamps). Item 202035 is an extra-small infrared touchscreen with a price and no store button. Call-for-price rows cover short bezel, open frame with glass, camera, high-nit, and other lamp combinations. The Pixel kiosk row 201315 is withheld from the public table.
Measurements for the size, from the table: 16:9, active area 476.064 by 267.79 mm, pixel pitch 0.2479 by 0.24795 mm, 1920 by 1080, refresh 60 Hz to 75 Hz, video ports HDMI, DVI-D, and VGA, touch interfaces USB and serial. Viewing is plus or minus 89 degrees. Color is 16.7 million (RGB 6-bit plus Hi-FRC). Brightness is 240 nits minimum and 300 nits typical. Response for this 21.5-inch panel is 14 ms typical and 20 ms maximum. Contrast typical is 1000:1. Power is a 24V DC adapter, 2.5 mm locking barrel, adapter input 100-240V. Draw is 17.1 W typical and 25.6 W maximum. Chassis is 523.4 by 326.1 by 60.5 mm. Weight is 12.2 lb (5.53 kg). Operating temperature is 0 C to +40 C, storage -20 C to +60 C, humidity 10% to 90%. VESA patterns are 200 by 200 mm and 100 by 100 mm. Life is 50,000+ hours. Glass is chemically treated. Regulatory cell lists UL.
Bezel choices on the sheet are no bezel, short bezel, and open frame. Frames are standard flange, #27 flange, and extruded. Optional cells list lamps, a camera, a high-nit panel, and glass. The warranty cell names a three-year standard term from Goldfinger Inc. Past that, a 22-inch-class unit is $65 labor plus parts on the bench. Operating temperature stops at +40 C on this size, which is tighter than several larger Goldfinger tables.
Configurations and prices
| Item # | Configuration | Frame | Price | Order |
|---|---|---|---|---|
| 202035 | 22" Extra Small IR Touch Screen | Standard panel | $625 | Order by phone |
| 401271 | 22" PCAP, No Bezel, #27 Flange | Extruded frame, LED halo | $449 | Buy now |
| 401272 | 22" PCAP, LED Lights | Extruded frame, LED halo | $510 | Buy now |
| 201222 | 22" IR, Short Bezel | Standard panel | Call for pricing | Get a price |
| 201271 | 22" IR, No Bezel, #27 Flange | Standard panel | Call for pricing | Get a price |
| 201272 | 22" IR, No Bezel, Std Flange, LED Lights | Standard panel | Call for pricing | Get a price |
| 201290 | 22" No Touch, Open Frame Design, With Glass | Standard panel | Call for pricing | Get a price |
| 401273 | 22" PCAP LED Lights, Camera | Extruded frame, LED halo | Call for pricing | Get a price |
| 401320 | 22" PCAP, High-nit, Extruded, no LED | Extruded frame, LED halo | Call for pricing | Get a price |
Buy Now opens the same item on our store, BillAcceptors.us, at the same price. Configurations without a listed price are stocked to order — call (877) 922-6707. Every new unit is covered by our 30-day, no-questions-asked return policy.
Specifications
| Display Size | 21.5" Diagonal (marketed as 22") |
|---|---|
| Touch Technology | PCAP (Projected Capacitive) – Multi-Touch |
| Touch Interfaces | USB and Serial |
| Aspect Ratio | 16:9 |
| Active Area | 476.064 mm (H) x 267.79 mm (V) |
| Max Resolution | 1920 (H) x 1080 (V) |
| Pixel Pitch | 0.2479 mm x 0.24795 mm |
| Other Supported Resolutions | 640x480; 800x600; 1024x768; 1280x720; 1280x800; 1280x960; 1280x1024; 1360x768; 1366x768; 1440x900; 1680x1050; 1920x1080 |
| Video Refresh Rate | 60 Hz - 75 Hz |
| Video I/O Ports | HDMI; DVI-D; VGA |
| Viewing Angle | Horizontal: ±89°; Vertical: ±89° |
| Number of Colors | 16.7M (RGB 6-bit + Hi-FRC) |
| Brightness Rating | Min: 240 nits; Typical: 300 nits |
| Response Time | Typ: 14ms; Max: 20ms |
| Contrast Ratio | Typ: 1000:1; Max: 700:1 |
| Power | 24V DC adapter; 2.5 mm locking barrel input; adapter input 100-240V |
| Power Consumption | Typ: 17.1W; Max: 25.6W |
| Monitor Dimensions | 523.4 mm x 326.1 mm x 60.5 mm |
| Weight | 12.2 lbs / 5.53 kg |
| Operating Temperature | 0°C - +40°C |
| Storage Temperature | -20°C - +60°C |
| Humidity Range | 10% - 90% Relative Humidity |
| On Screen Display | Goldfinger remote: Power, Back, Left, Right, Menu, Overscan, Picture Mode, Contrast, Brightness, Color, Tint, Sharpness, Backlight, Color Temp, Aspect Ratio, Noise Reduction, Mirror, Clock, Off/On Time, Sleep Timer, OSD Language, OSD Duration. Languages: English, French, Italian, German, Spanish, Chinese, Japanese |
| Mounting Options | VESA 200x200 mm; VESA 100x100 mm; pre-defined perimeter mounting |
| Regulatory Approvals | United States: UL |
| Touchscreen Glass Treatment | Chemically treated for strength |
| Warranty | 3 Year Standard (manufacturer warranty, Goldfinger Inc) |
| Bezel Options | No Bezel, Short Bezel, Open Frame |
| Frame Options | Standard Flange, #27 Flange, Extruded |
| Optional Features | LED Lights, Camera, High-nit Display, Glass |
| Operating Life | 50,000+ hours |
Measured for 401272 (Touch w/ LED). Other item numbers in this family share the panel but vary by frame, flange, bezel and touch type — see the configuration table above.
Source: Goldfinger PCAP Products Brochure (Goldfinger LLC, (c) 2024); 21.5in Brochure Spec Sheet (Goldfinger Inc). Published by Goldfinger, reproduced here by E & D Trading, Inc. as an authorized Goldfinger distributor.
Spec sheets and downloads
Goldfinger’s own documentation, provided for reference. Need a dimension that is not on the sheet? Call (877) 922-6707.
Already own a Goldfinger 22-Inch Class Touchscreens (21.5-Inch Panel)?
We repair Goldfinger monitors that are out of warranty at $65 labor plus parts, and stock the replacement parts. Call (877) 922-6707.
