Goldfinger 43-Inch J-Curve PCAP Touchscreen
J-curve 43-inch PCAP. Priced row 405227 has no lamps. Spec part-number cell is 405209.

From $1,895
Price shown is the price you pay — no quote form.
- 3-year manufacturer warranty from Goldfinger
- 30-day returns — no questions asked
- Out-of-warranty repair at $65 labor plus parts
- Replacement parts in stock
- Mon–Fri, 9am–5pm ET · (877) 922-6707
About the Goldfinger 43-Inch J-Curve PCAP Touchscreen
The J-curve is its own 43-inch shape. Item 405227 is the priced row: PCAP, extruded, no lamps, marked original. Item 405209 is the lamped J-curve and has no retail price. The spec table's part-number cell is 405209. Order 405227 when the priced no-lamp curve is the one you want, and say 405209 when the drawing's part number is what the cabinet was built against.
The table lists 43 inches on the diagonal, 1920 by 1080, 60 Hz, 400 cd/m2, contrast minimum 3200:1 and typical 4000:1, 10-point PCAP, response 8 ms typical and 16 ms maximum, viewing plus or minus 85 degrees, and 1.07 billion colors at 10-bit. Ports are two HDMI 2.1, DisplayPort, USB-A touch, serial touch, and 24V DC, plus 100-210V in the power cell. Draw is 46.3 W typical and 77.5 W maximum. Active area is 941.18 by 529.42 mm, 16:9. Chassis is 1034 by 594.5 by 89.4 mm. Weight is 48.72 lb (22.1 kg). J-curve operation is printed as 0 C to +60 C. Life is 70,000+ hours. Systems are Windows, MacOS, and Linux. Depth is 89.4 mm, which is neither the flat panel's 58 mm nor the C-curve's 174.86 mm.
Three-year coverage in the warranty cell is Goldfinger's manufacturer warranty. J-curve glass past that date is a bench job at $65 labor plus parts, and a flat 43-inch spare will not sit in this opening. No infrared J-curve is listed. Item 405227 is the priced no-lamp J-curve and it is the row that carries the store button.
Configurations and prices
| Item # | Configuration | Frame | Price | Order |
|---|---|---|---|---|
| 405227 | 43" J Curve, PCAP, Extruded, No LED Lights, Original | Extruded frame, LED halo | $1,895 | Buy now |
| 405209 | 43" LED J-Curve, PCAP with LED Lights | Extruded frame, LED halo | Call for pricing | Get a price |
Buy Now opens the same item on our store, BillAcceptors.us, at the same price. Configurations without a listed price are stocked to order — call (877) 922-6707. Every new unit is covered by our 30-day, no-questions-asked return policy.
Specifications
| Display Size | 43 inches (diagonal) |
|---|---|
| Resolution | 1920 x 1080 (Full HD) |
| Refresh Rate | 60Hz |
| Brightness | 400 cd/m² |
| Contrast Ratio | Min: 3200:1 Typ: 4000:1 |
| Touch Technology | Projected Capacitive (PCAP) |
| Touch Points | 10-point multi-touch |
| Response Time | Typ: 8ms Max: 16ms |
| Viewing Angle | H: ±85 V: ±85° |
| Color Depth | 1.07B colors; 10-bit |
| Connectivity | (2x) HDMI 2.1, DisplayPort, USB-A Touch, Serial Touch, 24VDC Power Input |
| Operating System | Windows, MacOS, and Linux Compatible |
| Operating Life | 70,000+ hours |
| Warranty | 3 Years |
| Part Number | 405209 |
| Aspect Ratio | 16:9 |
| Active Area | 941.18mm (H) x 529.42mm (V) |
| Power | 24V DC; 100-210V |
| Power Consumption | Typ: 46.3W; Max: 77.5W |
| Monitor Dimension | 1034mm x 594.5mm x 89.4mm |
| Weight | 48.72lbs. / 22.1kg |
| Operating Temp. | 0°C- +60°C |
Specifications are Goldfinger’s published figures for this family. Individual item numbers vary by frame, flange and touch type — see the configuration table above.

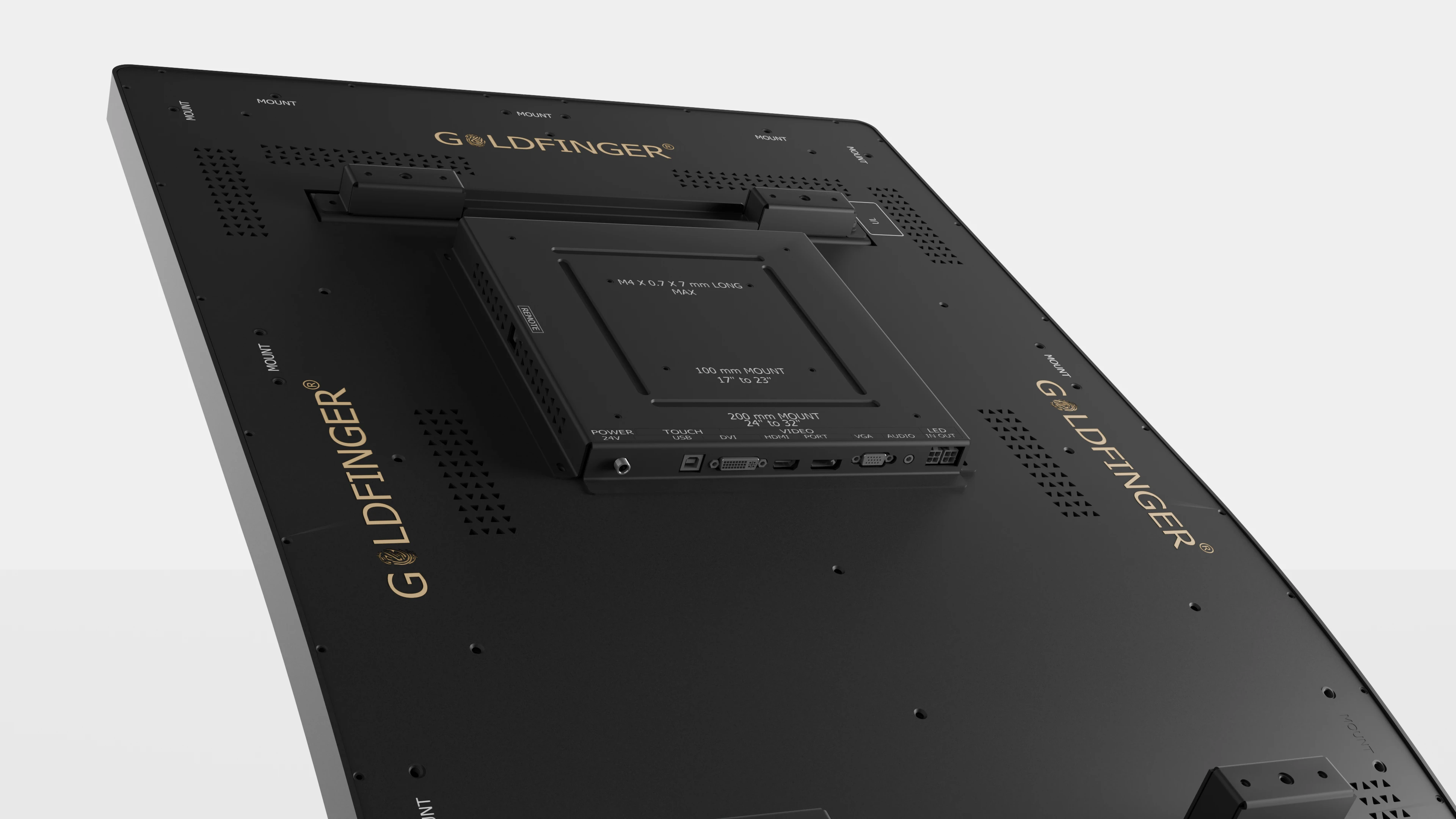

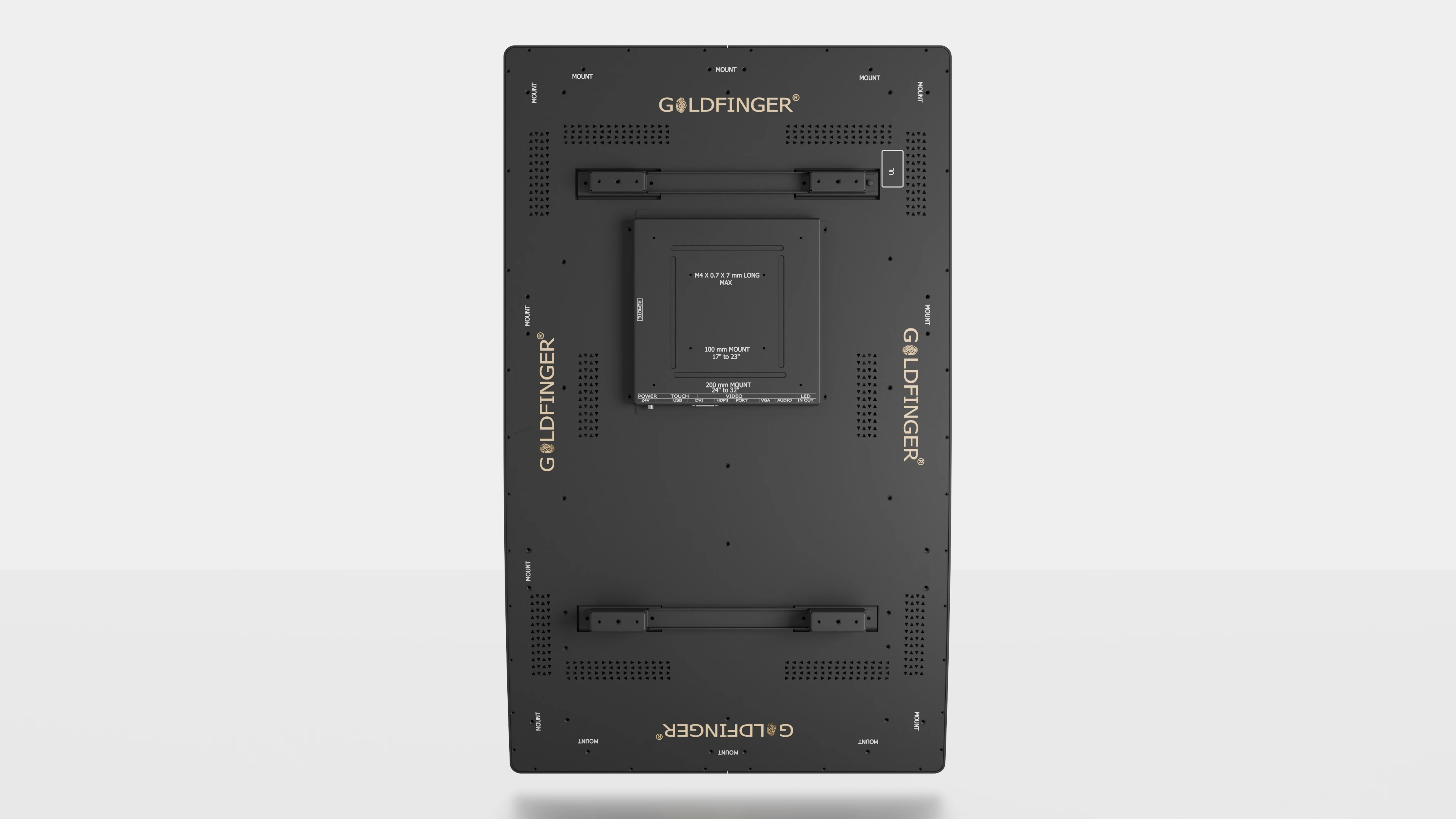

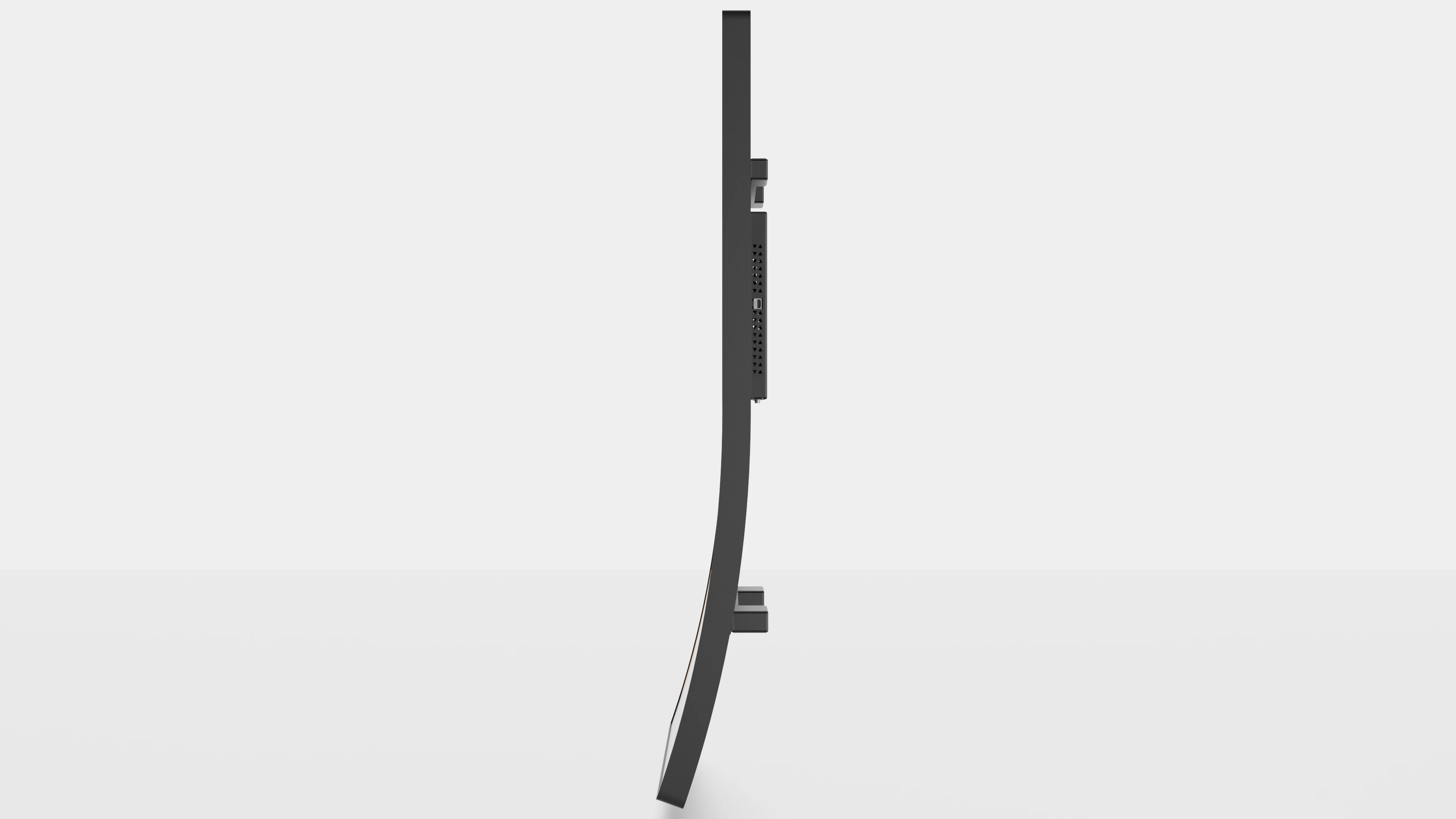

More views



Already own a Goldfinger 43-Inch J-Curve PCAP Touchscreen?
We repair Goldfinger monitors that are out of warranty at $65 labor plus parts, and stock the replacement parts. Call (877) 922-6707.
