Goldfinger 32-Inch Infrared, PCAP, and Non-Touch Line
32-inch family. Buy 405064 without lamps or 405068 with lamps. Infrared rows are 205064 and 205068.

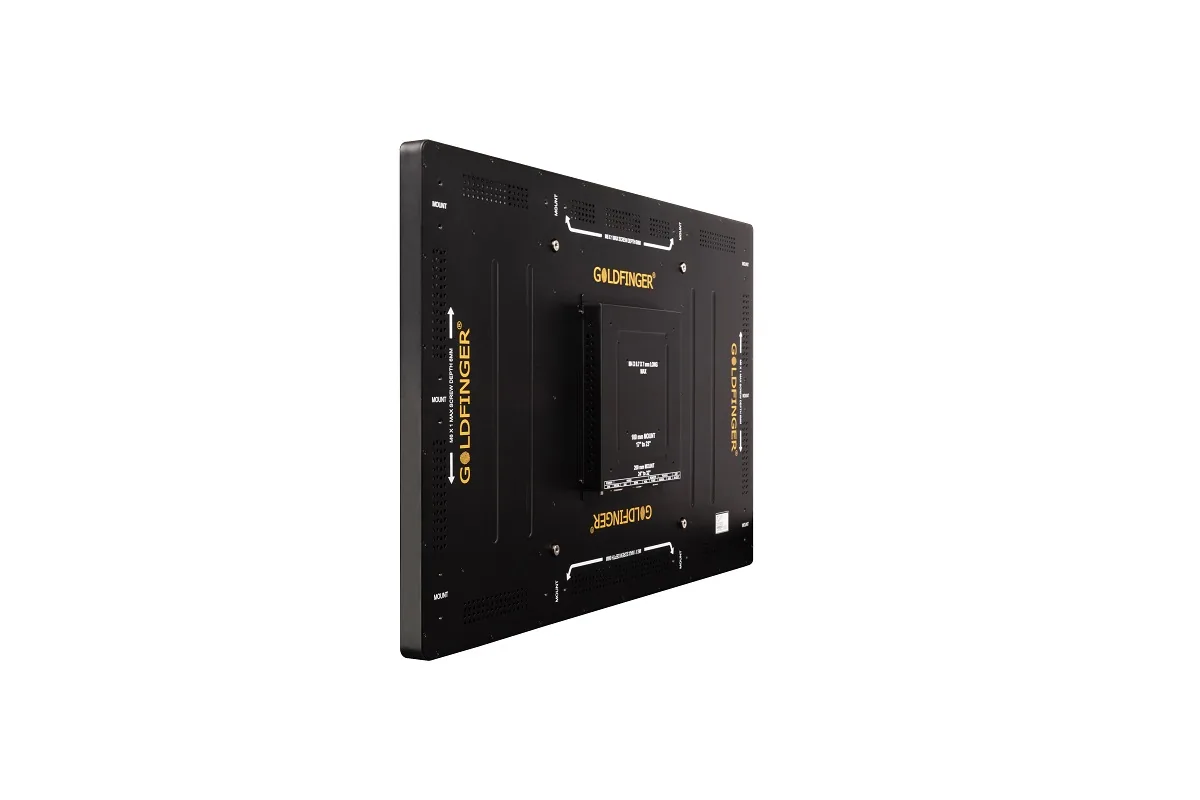

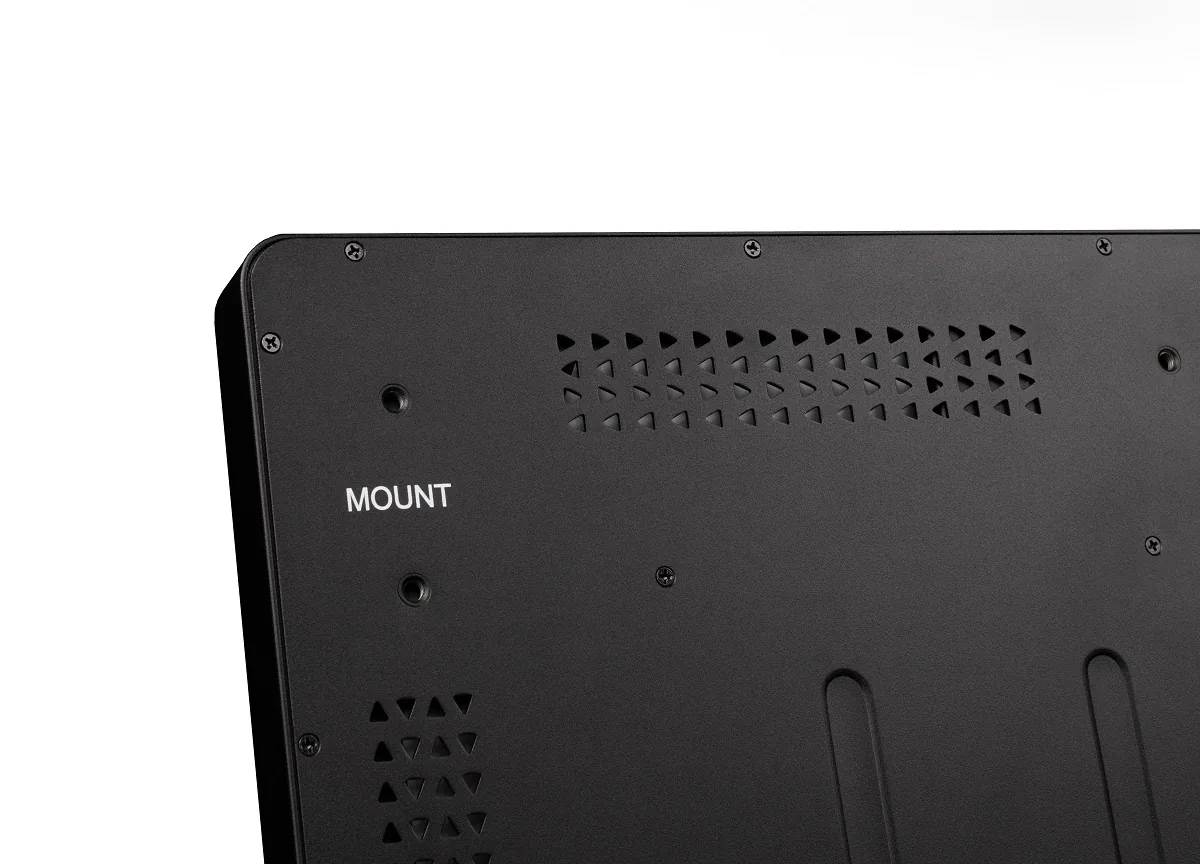

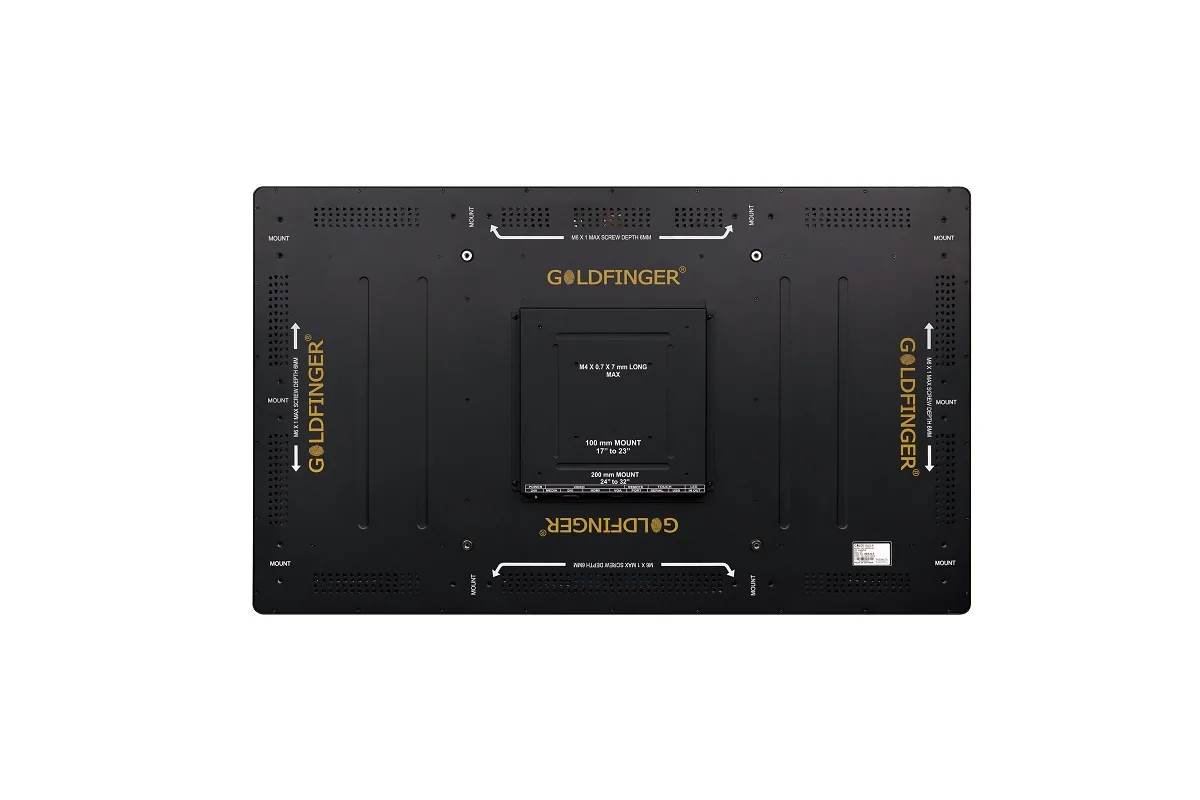

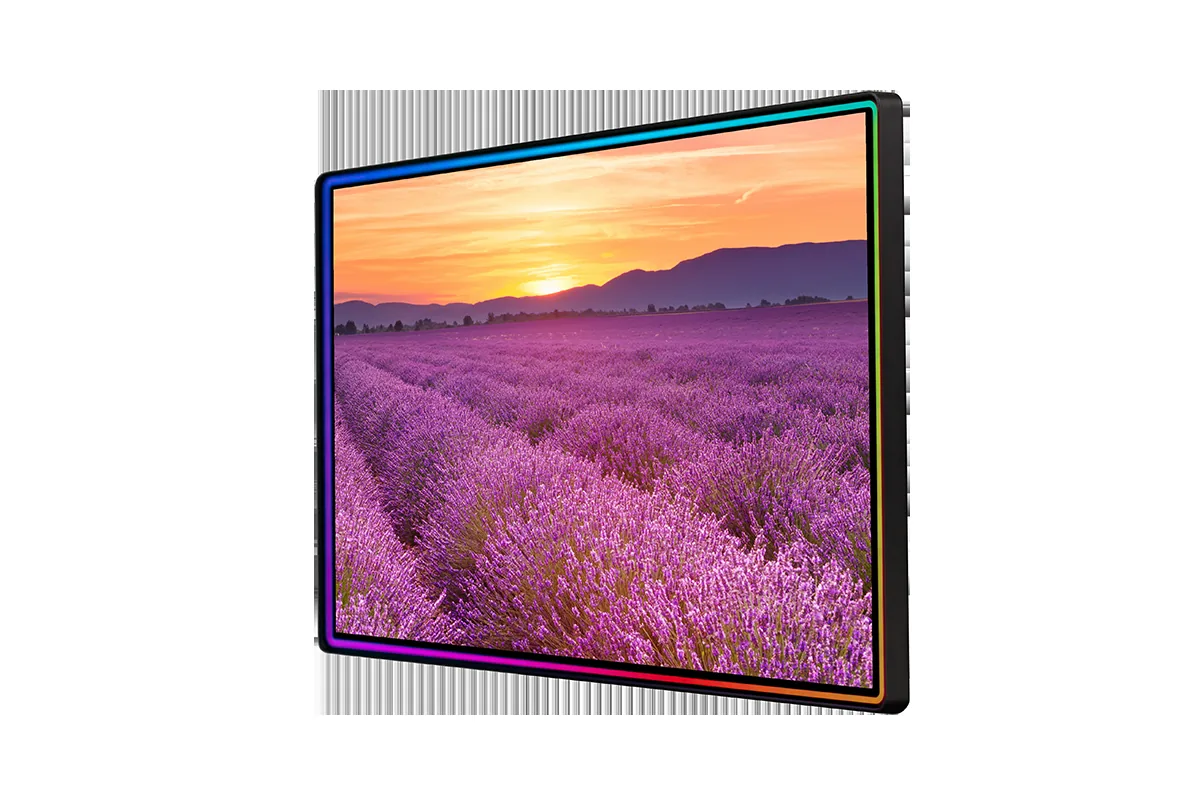

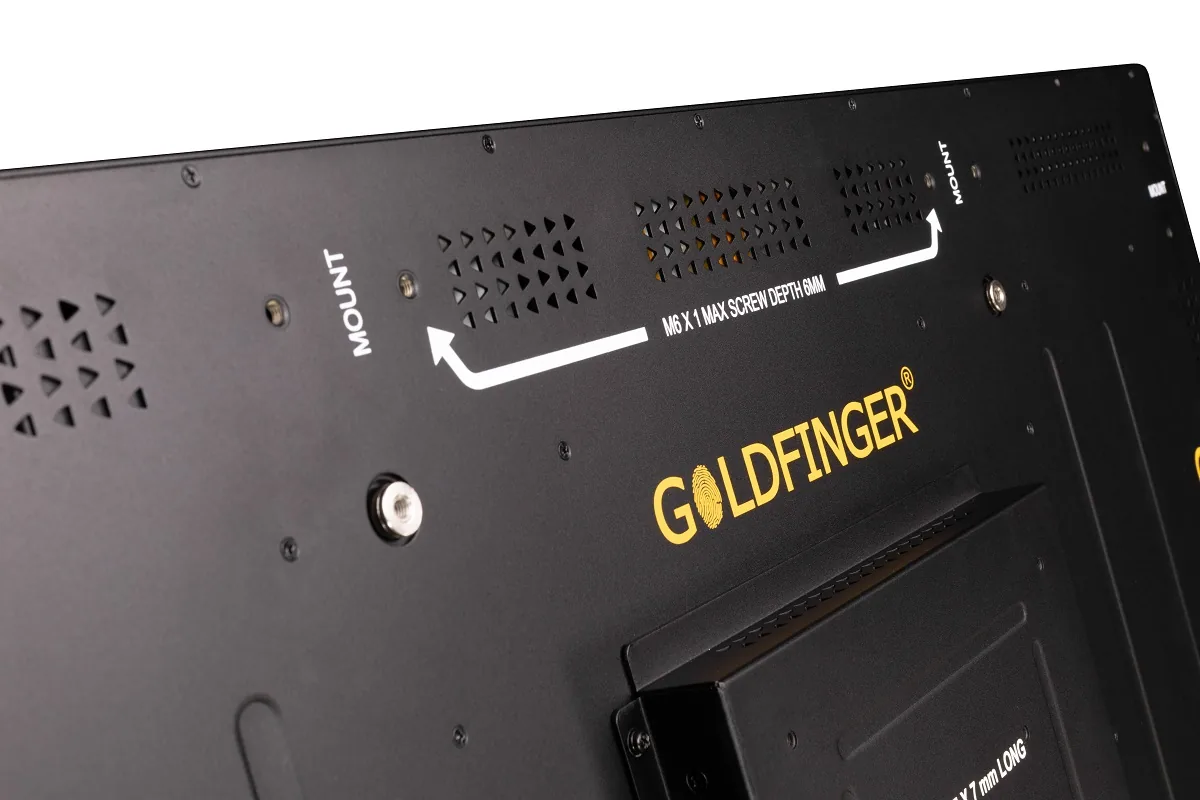

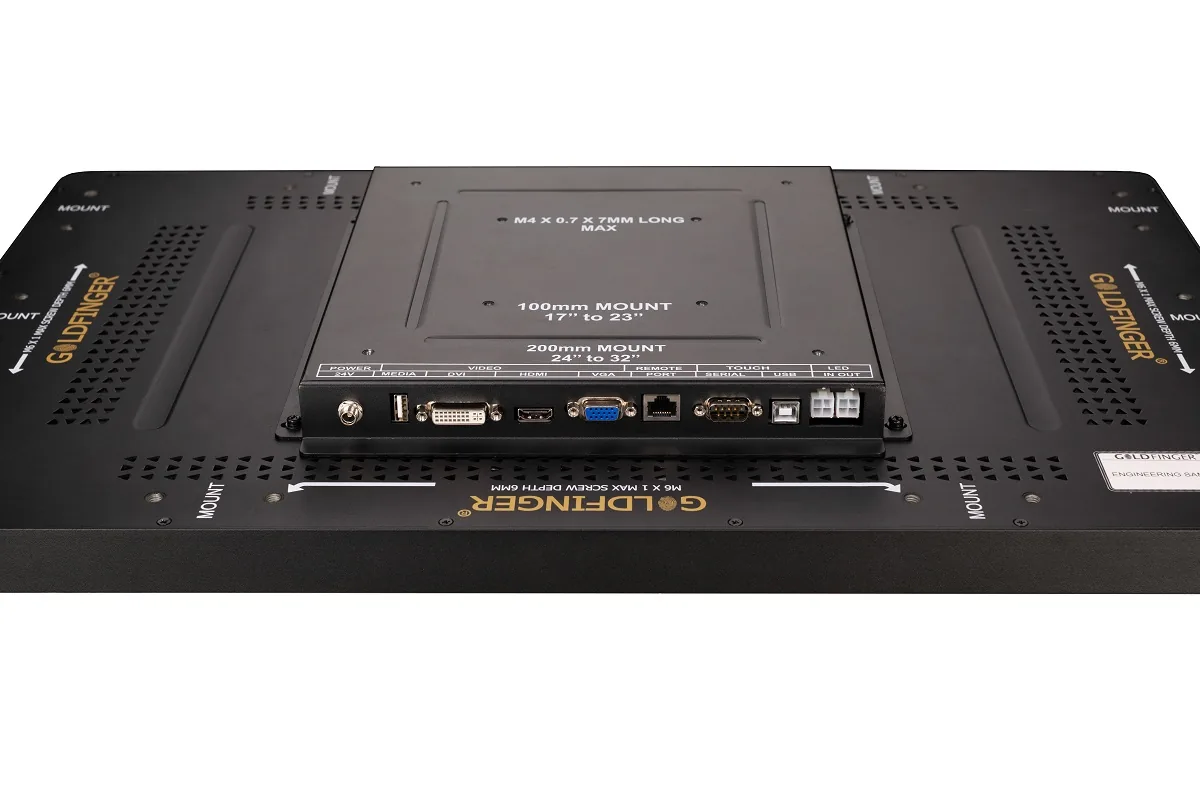

Product views — 10 photos
From $495
Price shown is the price you pay — no quote form.
- 3-year manufacturer warranty from Goldfinger
- 30-day returns — no questions asked
- Out-of-warranty repair at $65 labor plus parts
- Replacement parts in stock
- Mon–Fri, 9am–5pm ET · (877) 922-6707
About the Goldfinger 32-Inch Infrared, PCAP, and Non-Touch Line
The 32-inch Goldfinger page mixes touch methods, so the item number is the order. Priced rows: 405064 PCAP, no bezel, standard flange, no lamps; 405068 PCAP, extruded, with lamps; 205064 infrared, no bezel, standard flange; 205068 infrared, no bezel, extruded, with lamps. Two buy buttons point at 405064 and 405068. 405058 is non-touch and call-for-price. 405072 is an upgrade kit (monitor, bracket, parts, and cables), also call-for-price, and it is not a bare panel.
The size table lists a 32-inch diagonal, PCAP multi-touch, 16:9, active area 698.4 by 392.85 mm, 1920 by 1080, refresh 60 Hz to 75 Hz, video ports HDMI, DVI-D, and VGA, viewing plus or minus 89 degrees, 8-bit color at 16.7 million, 400 nits, response 8 ms, contrast typical 1200:1, 24V DC, draw 42.6 W typical and 47.3 W maximum, chassis 758.70 by 453.25 by 54 mm, weight 23.5 lb (10.66 kg), and 0 C to +50 C. Frames on the sheet are standard flange and extruded. Lamps are optional, which is the split between 405064 and 405068.
Infrared items 205064 and 205068 are real rows even though the measurement block is titled PCAP. Non-touch 405058 is a third path. Warranty text is three-year standard, manufacturer warranty, Goldfinger Inc. A 32-inch unit outside that warranty is $65 labor plus parts. The upgrade kit 405072 should be ordered with the cabinet item number in the note, because the kit is more than the glass. Keep the infrared and PCAP prices on their own rows when you write the quote.
Configurations and prices
| Item # | Configuration | Frame | Price | Order |
|---|---|---|---|---|
| 205064 | 32" IR, No Bezel, Std Flange | Standard panel | $670 | Order by phone |
| 205068 | 32" IR, No Bezel, Extruded, LED Lights | Standard panel | $770 | Order by phone |
| 405064 | 32" PCAP, No Bezel, Std Flange | Extruded frame, LED halo | $495 | Buy now |
| 405068 | 32" PCAP, Extruded, LED Lights | Extruded frame, LED halo | $575 | Buy now |
| 405058 | 32" Non-Touch | Extruded frame, LED halo | Call for pricing | Get a price |
| 405072 | 32" Upgrade Kit - Monitor, Bracket, Misc. Parts and Cables | Extruded frame, LED halo | Call for pricing | Get a price |
Buy Now opens the same item on our store, BillAcceptors.us, at the same price. Configurations without a listed price are stocked to order — call (877) 922-6707. Every new unit is covered by our 30-day, no-questions-asked return policy.
Specifications
| Display Size | 32" Diagonal |
|---|---|
| Touch Technology | PCAP (Projected Capacitive) – Multi-Touch |
| Aspect Ratio | 16:9 |
| Active Area | 698.4 mm (H) x 392.85 mm (V) |
| Max Resolution | 1920 (H) x 1080 (V) |
| Video Refresh Rate | 60 Hz - 75 Hz |
| Video I/O Ports | HDMI; DVI-D; VGA |
| Viewing Angle | Horizontal: ±89°; Vertical: ±89° |
| Number of Colors | 8-bit depth; 16.7M colors |
| Brightness Rating | 400 nits |
| Response Time | 8ms |
| Contrast Ratio | Typ: 1200:1; Max: 900:1 |
| Power | 24V DC |
| Power Consumption | Typ: 42.6W; Max: 47.3W |
| Monitor Dimensions | 758.70 mm x 453.25 mm x 54 mm |
| Weight | 23.5 lbs / 10.66 kg |
| Operating Temperature | 0°C - +50°C |
| Warranty | 3 Year Standard (manufacturer warranty, Goldfinger Inc) |
| Frame Options | Standard Flange, Extruded |
| Optional Features | LED Lights |
Measured for 405080 (Touch w/ LED), 405068 (Touch w/o LED), 405064 (Standard, touch, w/o LED), 405086 (No touch, w/o LED). Other item numbers in this family share the panel but vary by frame, flange, bezel and touch type — see the configuration table above.
Source: Goldfinger PCAP Products Brochure (Goldfinger LLC, (c) 2024). Published by Goldfinger, reproduced here by E & D Trading, Inc. as an authorized Goldfinger distributor.
Spec sheets and downloads
Goldfinger’s own documentation, provided for reference. Need a dimension that is not on the sheet? Call (877) 922-6707.
Already own a Goldfinger 32-Inch Infrared, PCAP, and Non-Touch Line?
We repair Goldfinger monitors that are out of warranty at $65 labor plus parts, and stock the replacement parts. Call (877) 922-6707.
