Goldfinger Side-by-Side 27-Inch PCAP Displays
Two 27-inch PCAP panels in one frame, item 405750, with lamps. Not the single 27-inch page.

Dual-screen — 4 photos
$1,125
Price shown is the price you pay — no quote form.
- 3-year manufacturer warranty from Goldfinger
- 30-day returns — no questions asked
- Out-of-warranty repair at $65 labor plus parts
- Replacement parts in stock
- Mon–Fri, 9am–5pm ET · (877) 922-6707

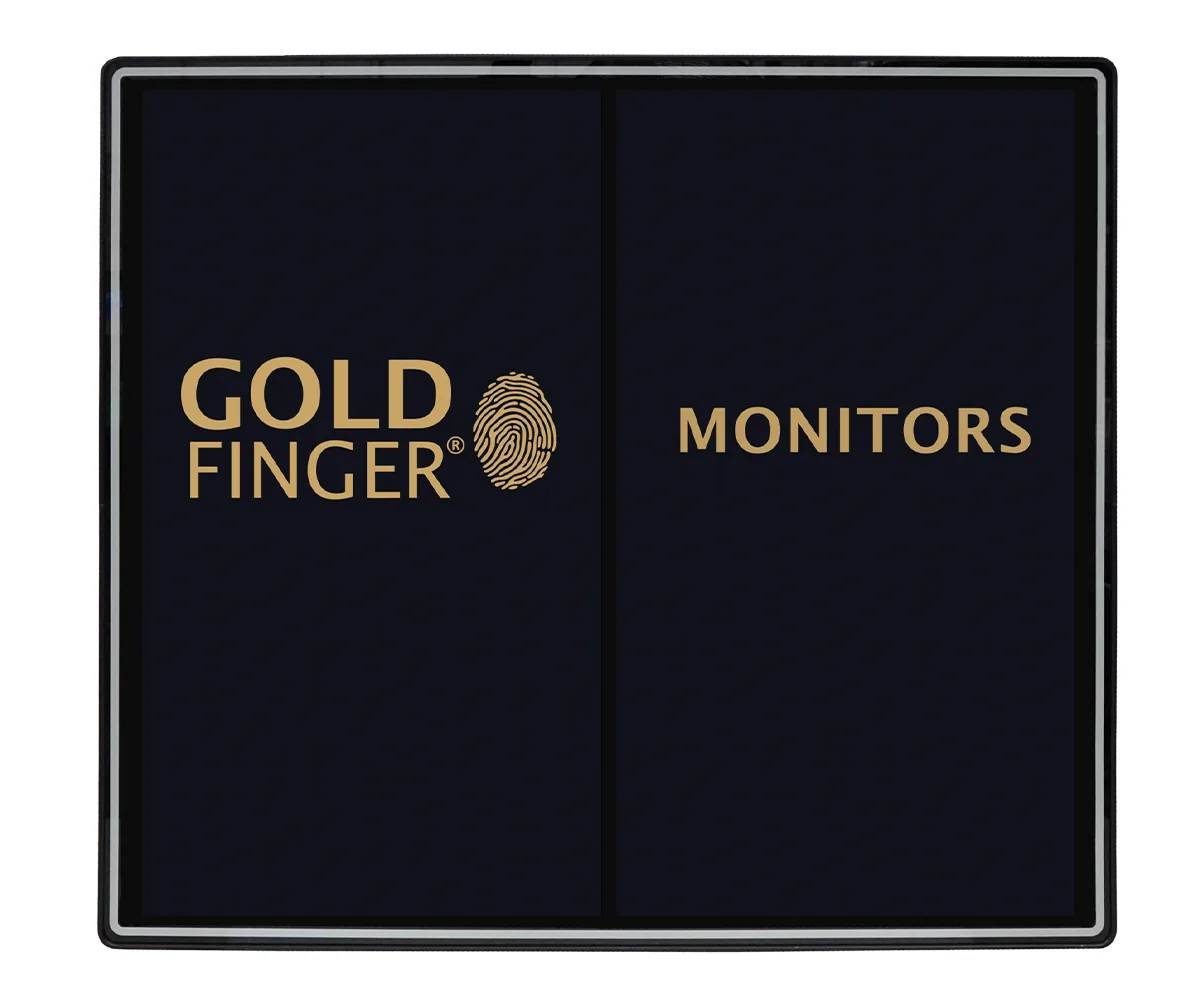

About the Goldfinger Side-by-Side 27-Inch PCAP Displays
Item 405750 is one frame holding two 27-inch panels, PCAP, extruded, with lamps. It is the only row on this page and it has its own store listing. Do not pull drawings from the single 27-inch page. The display-size cell says two 27-inch diagonals, and the resolution cell says two times 1920 by 1080.
Refresh is 60 Hz. Brightness is 250 cd/m2. The contrast cell prints a minimum of 1000:1 and a typical of 700:1, which is the order on the sheet. Touch is PCAP. The touch-points cell reads multi-touch PCAP across the whole glass. Response for the dual 27-inch assembly is 14 ms typical and 20 ms maximum. The viewing cell prints +89 degrees horizontal and +89 degrees vertical. Color is 16.7 million, 8-bit. Pixel pitch is 0.311 by 0.311 mm. Active area is 597.88 by 336.31 mm. Ports are HDMI 2.1, VGA, DisplayPort, DVI-D, USB-A, serial, and a 24V DC input, with 100-210V also in the power cell. The consumption cell prints 33.8 W and a maximum of 38.7 W. Chassis is 739.66 by 644.95 by 62.43 mm. Weight is 33.5 lb (15.19 kg). The dual assembly's operating cell is 0 C to +50 C. Life is 50,000+ hours. Systems listed are Windows, MacOS, and Linux.

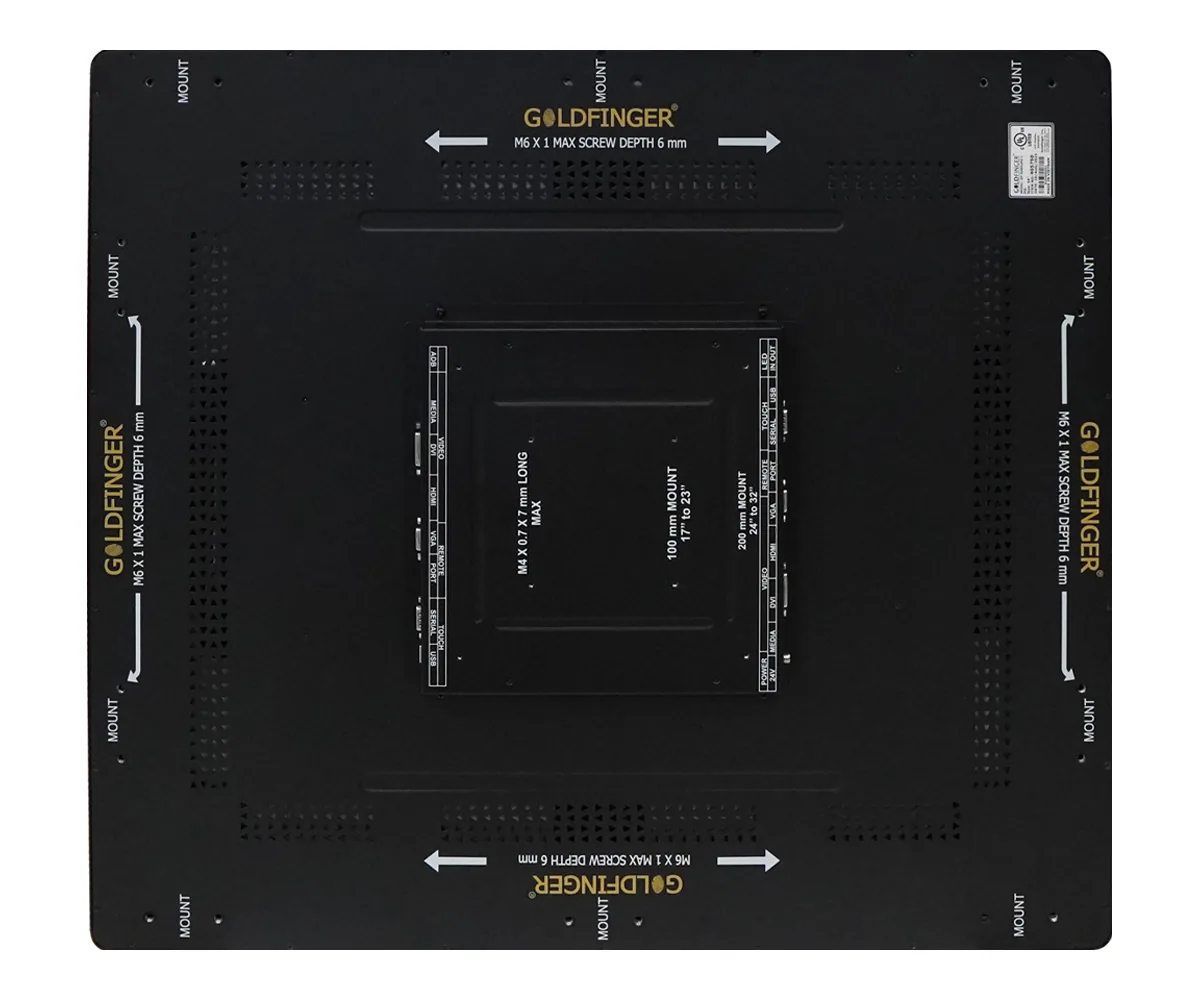

That chassis is not a single-panel cutout; 739.66 mm on one side and 644.95 mm on the other is the dual assembly. Warranty on the sheet is three years, and it is Goldfinger's manufacturer warranty. A dual that is outside that window is booked at $65 labor plus parts, with the quote naming which panel failed. There is no infrared item number on this page.
Configurations and prices
| Item # | Configuration | Frame | Price | Order |
|---|---|---|---|---|
| 405750 | 27" Dual, PCAP, Extruded, LED Lights | Extruded frame, LED halo | $1,125 | Buy now |
Buy Now opens the same item on our store, BillAcceptors.us, at the same price. Configurations without a listed price are stocked to order — call (877) 922-6707. Every new unit is covered by our 30-day, no-questions-asked return policy.
Specifications
| Display Size | (2) 27" Diagonal |
|---|---|
| Resolution | (2) 1920x1080 (Full HD) |
| Refresh Rate | 60Hz |
| Brightness | 250 cd/m² |
| Contrast Ratio | Min: 1000:1; Typ 700:1 |
| Touch Technology | Projected Capacitive (PCAP) |
| Touch Points | Edge to Edge Multi-Touch PCAP |
| Response Time | Typical 14ms; Max 20ms |
| Viewing Angle | Horizontal: +89°; Vertical: +89° |
| Color Depth | 16.7M colors; 8-bit |
| Connectivity | HDMI 2.1, VGA, DisplayPort, DVI-D, USB-A, Serial, 24VDC Power Input |
| Operating System | Windows, MacOS, and Linux Compatible |
| Operating Life | 50,000+ hours |
| Warranty | 3 Years |
| Active Area | 597.88mm (H) x 336.31mm (V) |
| Pixel Pitch | .311mm x .311mm |
| Power | 24V DC; 100-210V |
| Power Consumption | TyR: 33.8W Max: 38.7W |
| Monitor Dimension | 739.66mm x 644.95mm x 62.43mm |
| Weight | 33.5 Ibs / 15.19kg |
| Operating Temp. | 0°C- +50°C |
Specifications are Goldfinger’s published figures for this family. Individual item numbers vary by frame, flange and touch type — see the configuration table above.
Already own a Goldfinger Side-by-Side 27-Inch PCAP Displays?
We repair Goldfinger monitors that are out of warranty at $65 labor plus parts, and stock the replacement parts. Call (877) 922-6707.
