Goldfinger 19-Inch Infrared and PCAP Touchscreens
19-inch line with IR and PCAP rows. 201107, 401035, and 401107 are the priced items.

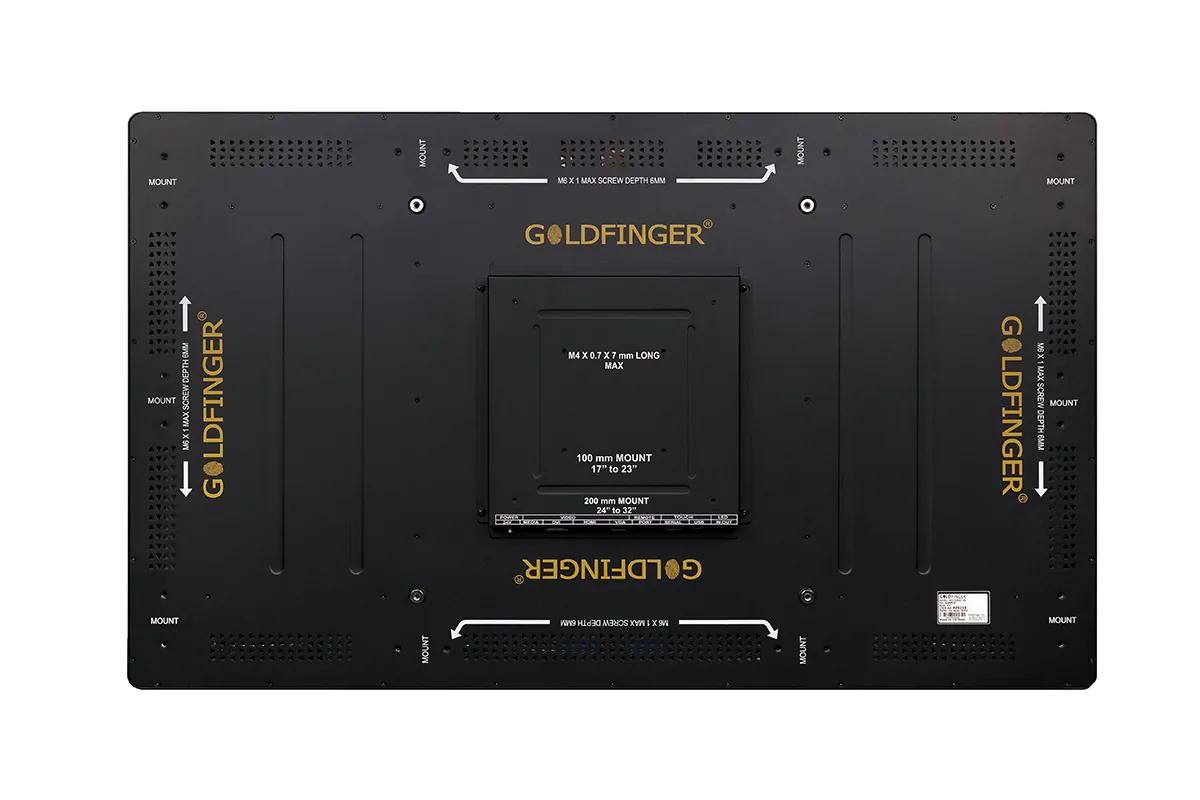

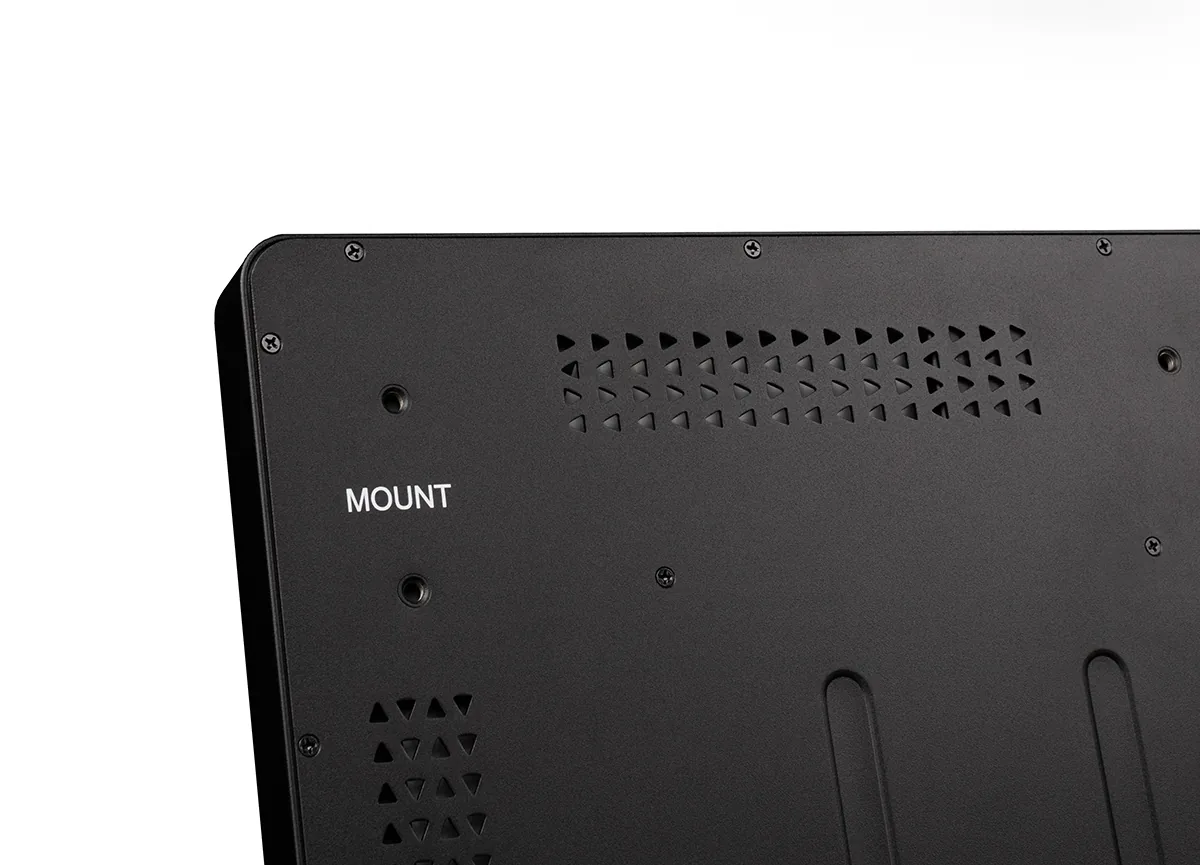

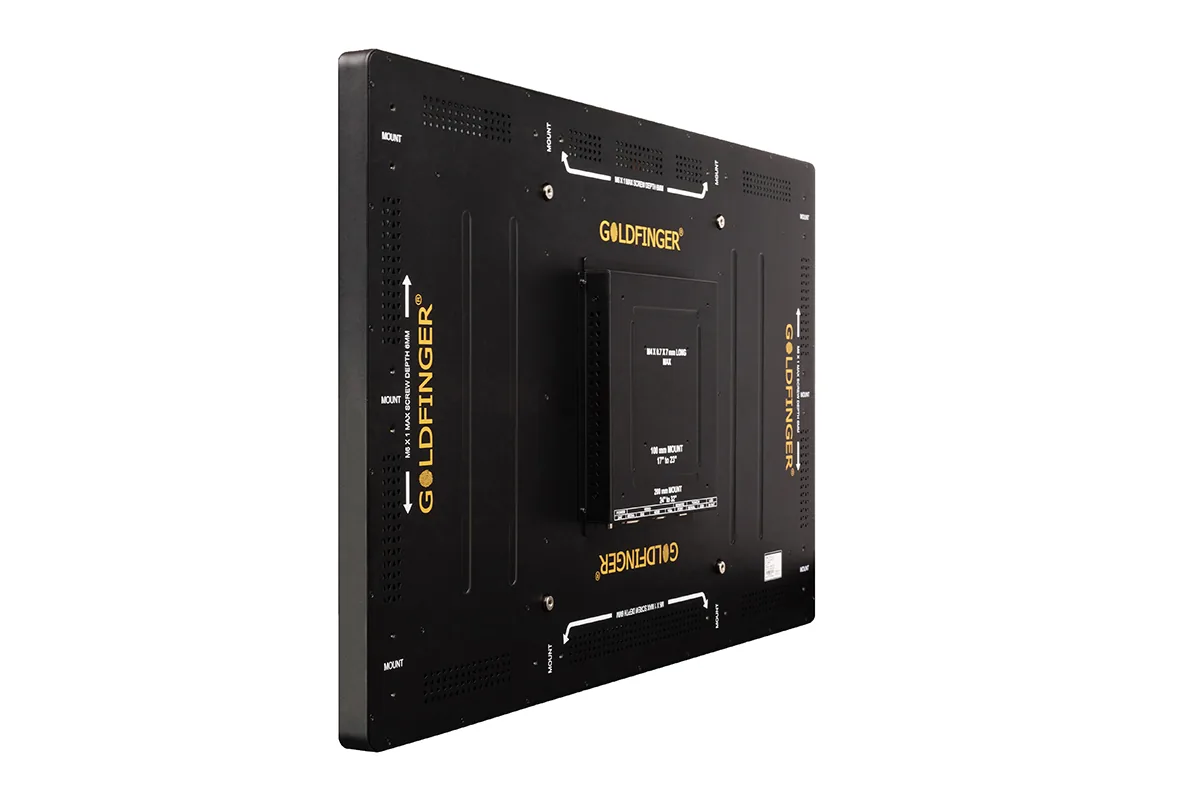

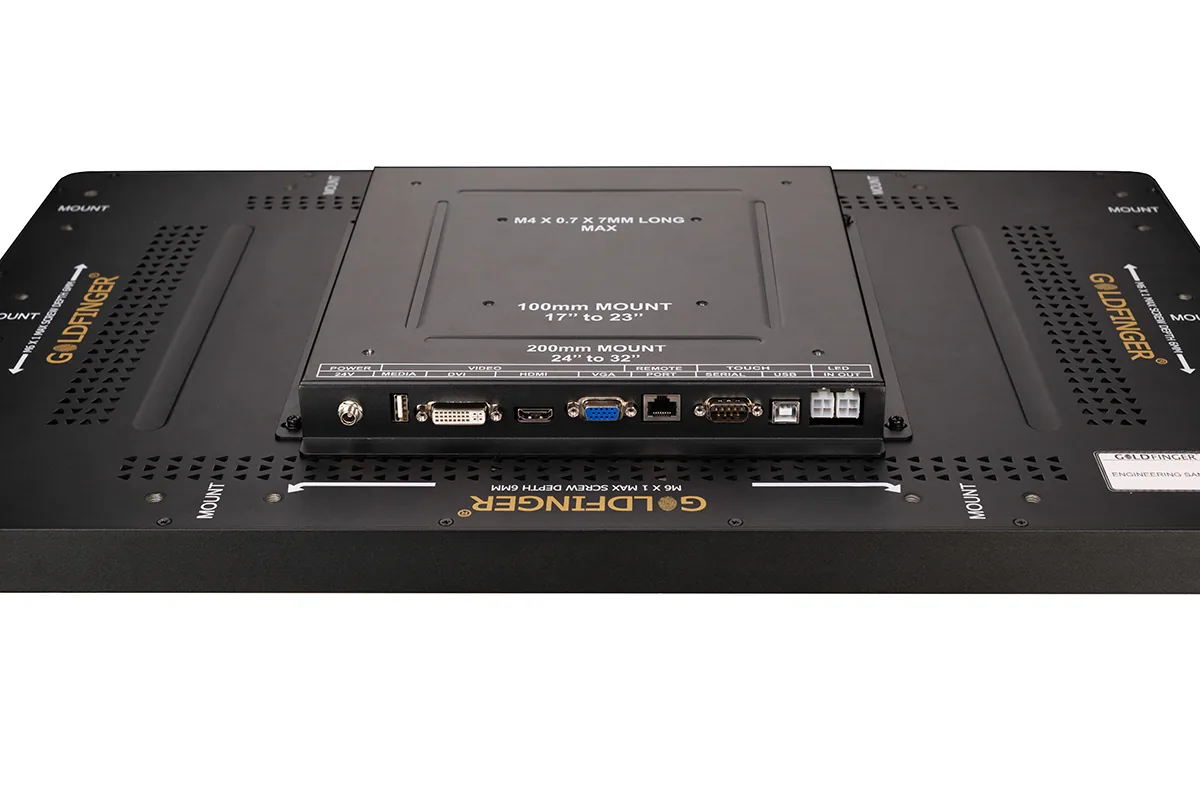

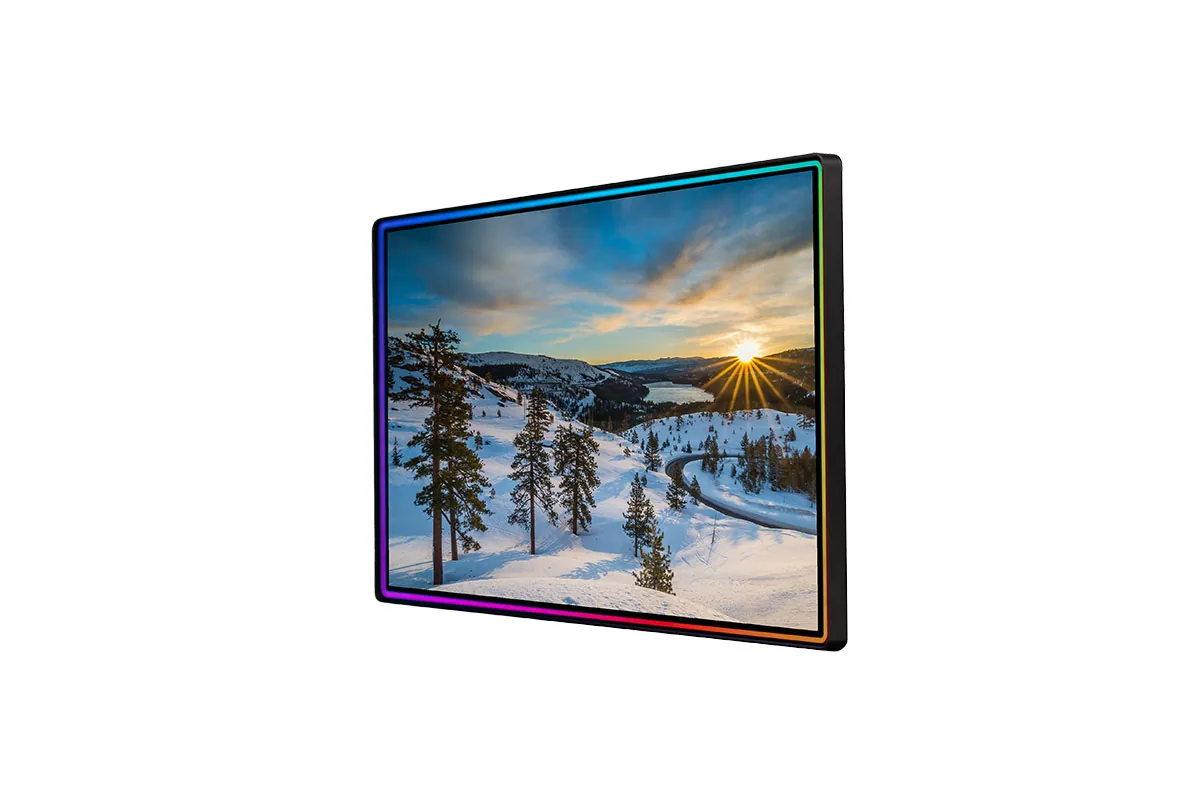

Product views — 9 photos
From $445
Price shown is the price you pay — no quote form.
- 3-year manufacturer warranty from Goldfinger
- 30-day returns — no questions asked
- Out-of-warranty repair at $65 labor plus parts
- Replacement parts in stock
- Mon–Fri, 9am–5pm ET · (877) 922-6707
About the Goldfinger 19-Inch Infrared and PCAP Touchscreens
Order the 19-inch Goldfinger by item number, because touch, bezel, and flange are not one product. Priced rows are 201107 (infrared, no bezel, standard flange), 401035 (PCAP, #28 bezel, no flange, model GF-19S13P61), and 401107 (PCAP, no bezel, standard flange). Unpriced rows include 201035, 201114 with lamps, 201115, and 401110 with POE and SLABB. The linked store page for 201107 is the Ovation jukebox replacement; the other item numbers are separate configurations on this same family.
The size table is the manufacturer block for this diagonal. It lists 19 inches, PCAP multi-touch, 16:9, active area 374.78 by 299.83 mm, 1920 by 1080, 60 Hz, HDMI, DVI-D, and VGA, viewing plus or minus 89 degrees both axes, 6-bit at 16.7 million colors, 250 nits, response 14 ms typical and 20 ms maximum, contrast 1000:1 typical, 24V DC, draw 13 W typical and 17.4 W maximum, chassis 417 by 343 by 54 mm, and weight 10.2 lb (4.63 kg). The 19-inch operating cell runs from 0 C to +50 C. Bezel options printed beside that are no bezel and #28 bezel. Frame options are standard flange and no flange. Optional features listed are lamps and POE.
Infrared rows are on the price table even though the measurement block is headed PCAP, so do not tell a customer that 201107 is a capacitive glass. Match the item number to the configuration column. Warranty text on the sheet is three-year standard, manufacturer warranty, Goldfinger Inc. Out-of-warranty 19-inch repairs are $65 labor plus parts. New units follow the 30-day return.
Configurations and prices
| Item # | Configuration | Frame | Price | Order |
|---|---|---|---|---|
| 201107 | 19" IR, No Bezel, Std Flange | Standard panel | $445 | Buy now |
| 401035 | 19" PCAP, #28 Bezel, No Flange — model GF-19S13P61 | Extruded frame, LED halo | $450 | Order by phone |
| 401107 | 19" PCAP, No Bezel, Std Flange | Extruded frame, LED halo | $475 | Order by phone |
| 201035 | 19" IR #28 Bezel, No Flange | Standard panel | Call for pricing | Get a price |
| 201114 | 19" IR, No Bezel, LED Lights | Standard panel | Call for pricing | Get a price |
| 201115 | 19" PCAP Touch | Standard panel | Call for pricing | Get a price |
| 401110 | 19" PCAP, POE, SLABB | Extruded frame, LED halo | Call for pricing | Get a price |
Buy Now opens the same item on our store, BillAcceptors.us, at the same price. Configurations without a listed price are stocked to order — call (877) 922-6707. Every new unit is covered by our 30-day, no-questions-asked return policy.
Specifications
| Display Size | 19" Diagonal |
|---|---|
| Touch Technology | PCAP (Projected Capacitive) – Multi-Touch |
| Aspect Ratio | 16:9 |
| Active Area | 374.78 mm (H) x 299.83 mm (V) |
| Max Resolution | 1920 (H) x 1080 (V) |
| Video Refresh Rate | 60 Hz |
| Video I/O Ports | HDMI; DVI-D; VGA |
| Viewing Angle | Horizontal: ±89°; Vertical: ±89° |
| Number of Colors | 6-bit depth; 16.7M colors |
| Brightness Rating | 250 nits |
| Response Time | Typ: 14ms; Max: 20ms |
| Contrast Ratio | Typ: 1000:1; Max: 700:1 |
| Power | 24V DC |
| Power Consumption | Typ: 13W; Max: 17.4W |
| Monitor Dimensions | 417 mm x 343 mm x 54 mm |
| Weight | 10.2 lbs / 4.63 kg |
| Operating Temperature | 0°C - +50°C |
| Warranty | 3 Year Standard (manufacturer warranty, Goldfinger Inc) |
| Bezel Options | No Bezel, #28 Bezel |
| Frame Options | Standard Flange, No Flange |
| Optional Features | LED Lights, POE |
Measured for 401035 (Touch), 401107 (Touch). Other item numbers in this family share the panel but vary by frame, flange, bezel and touch type — see the configuration table above.
Source: Goldfinger PCAP Products Brochure (Goldfinger LLC, (c) 2024). Published by Goldfinger, reproduced here by E & D Trading, Inc. as an authorized Goldfinger distributor.
Spec sheets and downloads
Goldfinger’s own documentation, provided for reference. Need a dimension that is not on the sheet? Call (877) 922-6707.
Already own a Goldfinger 19-Inch Infrared and PCAP Touchscreens?
We repair Goldfinger monitors that are out of warranty at $65 labor plus parts, and stock the replacement parts. Call (877) 922-6707.
