Goldfinger 24-Inch Infrared and PCAP Touchscreens

24-inch extruded line. Priced rows: 402200 PCAP with lamps, 402172 PCAP, and 202200 infrared with lamps.

From $525

Price shown is the price you pay — no quote form.



  • 3-year manufacturer warranty from Goldfinger
  • 30-day returns — no questions asked
  • Out-of-warranty repair at $65 labor plus parts
  • Replacement parts in stock
  • Mon–Fri, 9am–5pm ET · (877) 922-6707

About the Goldfinger 24-Inch Infrared and PCAP Touchscreens

Three 24-inch rows have prices. 402200 is PCAP, extruded, with lamps. 402172 is PCAP, extruded, without that lamp row. 202200 is infrared, extruded, with lamps. 202168 is infrared multi-touch, no bezel, standard flange, and is call-for-price. The store button on this page is the 402200 listing. The other priced rows are still on the configuration table if the job is infrared or an unlighted PCAP.

The size table lists a 24-inch diagonal, PCAP multi-touch, 16:9, active area 527.04 by 296.46 mm, 1920 by 1080, refresh 60 Hz to 75 Hz, and video ports HDMI, DVI-D, and VGA. Viewing is plus or minus 89 degrees. Color is 8-bit, 16.7 million. Brightness is 250 nits. The 24-inch response cell reads 14 ms typical and 20 ms maximum. Contrast typical is 1000:1. Power is 24V DC. Draw is 15.8 W typical and 23.7 W maximum. Weight is 15.2 lb (6.89 kg). The 24-inch operating cell prints 0 C to +50 C. Bezel cell says no bezel. Frames are standard flange and extruded. Lamps are an optional feature, which is why 402172 exists beside 402200.

Infrared item 202200 is on the price table even though the measurement block is the PCAP size table. Specify touch from the configuration column. Warranty language is three-year standard, manufacturer warranty, Goldfinger Inc. A 24-inch unit outside that window is repaired here at $65 labor plus parts. The chassis-dimension cell prints 593 by 296 by 57.66 mm; use the active area and the weight when a drawing needs a number you can defend, and show the customer the dimension cell rather than rounding it.

Configurations and prices

Goldfinger 24-Inch Infrared and PCAP Touchscreens configurations, item numbers and prices
Item #Configuration FramePrice Order
20220024" IR, Extruded, LED LightsStandard panel$575Order by phone
40217224" PCAP, ExtrudedExtruded frame, LED halo$550Order by phone
40220024" PCAP, Extruded, LED LightsExtruded frame, LED halo$525 $575 Buy now
20216824" IR, Multi Touch, No Bezel, Std FlangeStandard panelCall for pricingGet a price

Buy Now opens the same item on our store, BillAcceptors.us, at the same price. Configurations without a listed price are stocked to order — call (877) 922-6707. Every new unit is covered by our 30-day, no-questions-asked return policy.

Specifications

Goldfinger 24-Inch Infrared and PCAP Touchscreens manufacturer specifications
Display Size24" Diagonal
Touch TechnologyPCAP (Projected Capacitive) – Multi-Touch
Aspect Ratio16:9
Active Area527.04 mm (H) x 296.46 mm (V)
Max Resolution1920 (H) x 1080 (V)
Video Refresh Rate60 Hz - 75 Hz

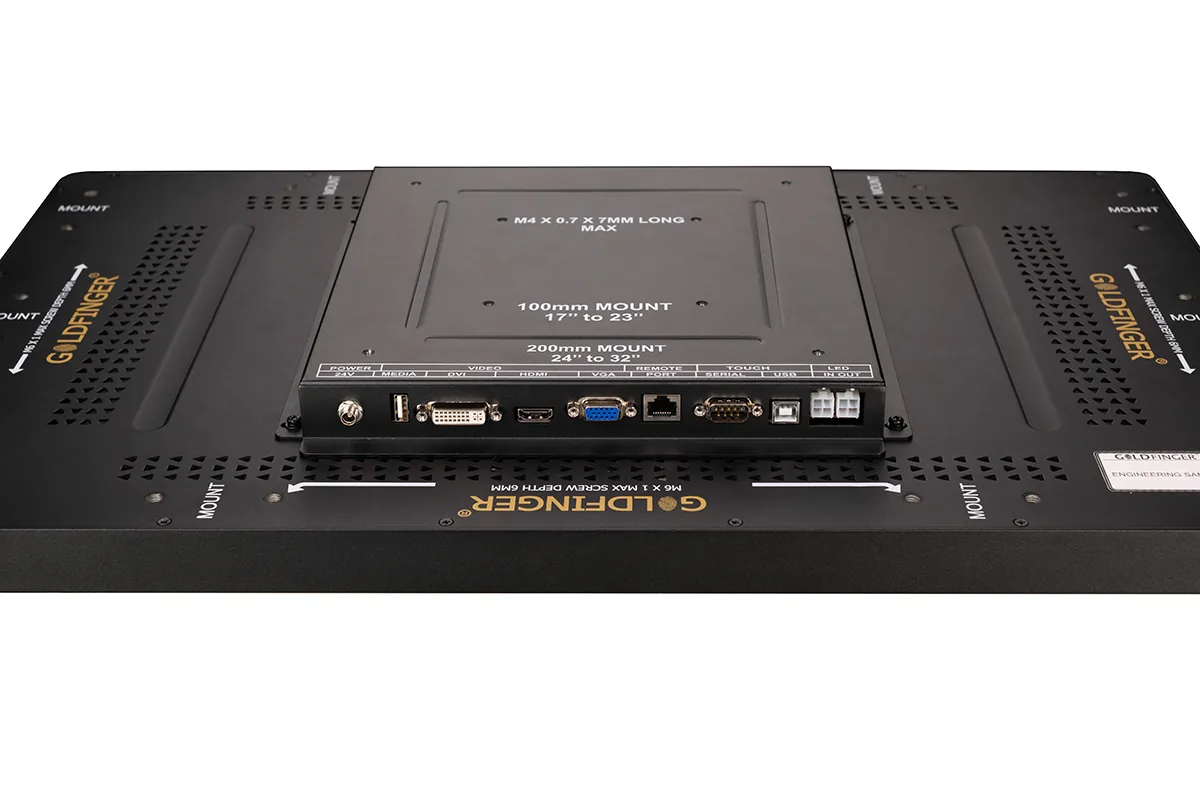

Video I/O PortsHDMI; DVI-D; VGA
Viewing AngleHorizontal: ±89°; Vertical: ±89°
Number of Colors8-bit depth; 16.7M colors
Brightness Rating250 nits
Response TimeTyp: 14ms; Max: 20ms
Contrast RatioTyp: 1000:1; Max: 700:1
Power24V DC
Power ConsumptionTyp: 15.8W; Max: 23.7W
Monitor Dimensions593 mm x 296 mm x 57.66 mm
Weight15.2 lbs / 6.89 kg
Operating Temperature0°C - +50°C
Warranty3 Year Standard (manufacturer warranty, Goldfinger Inc)
BezelNo Bezel
Frame OptionsStandard Flange, Extruded

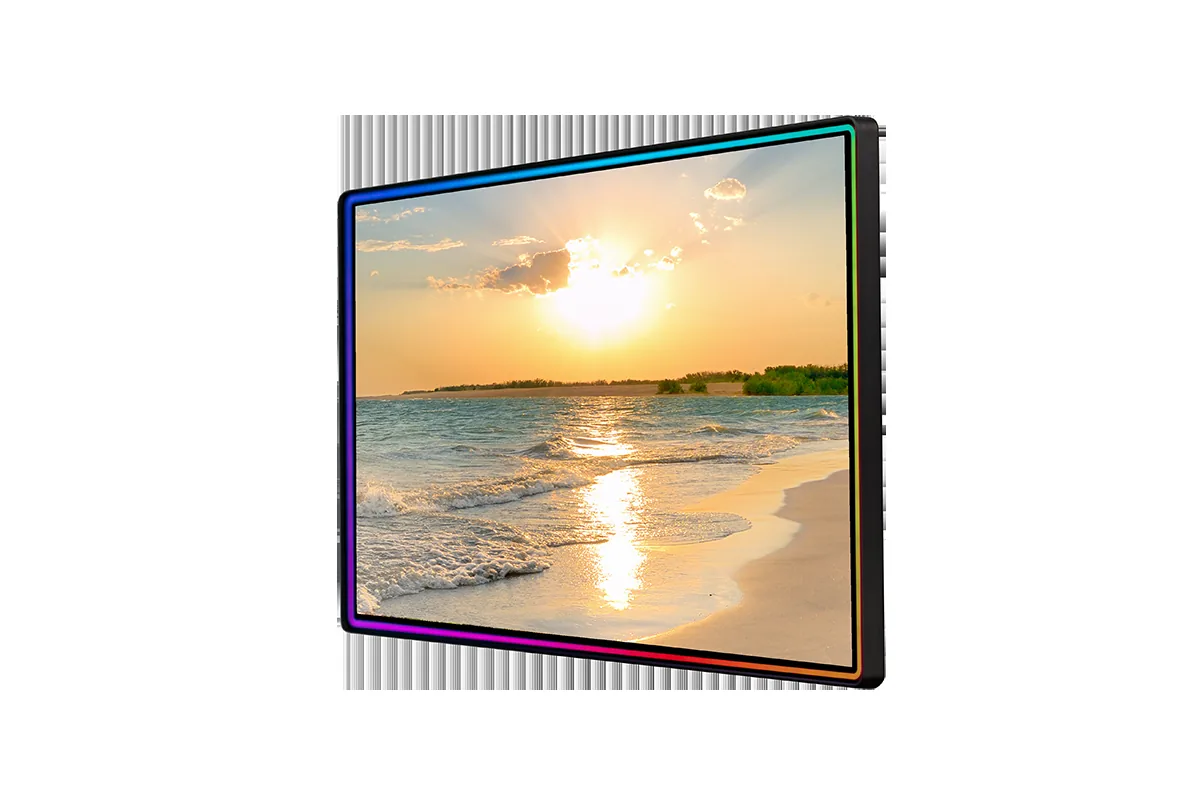

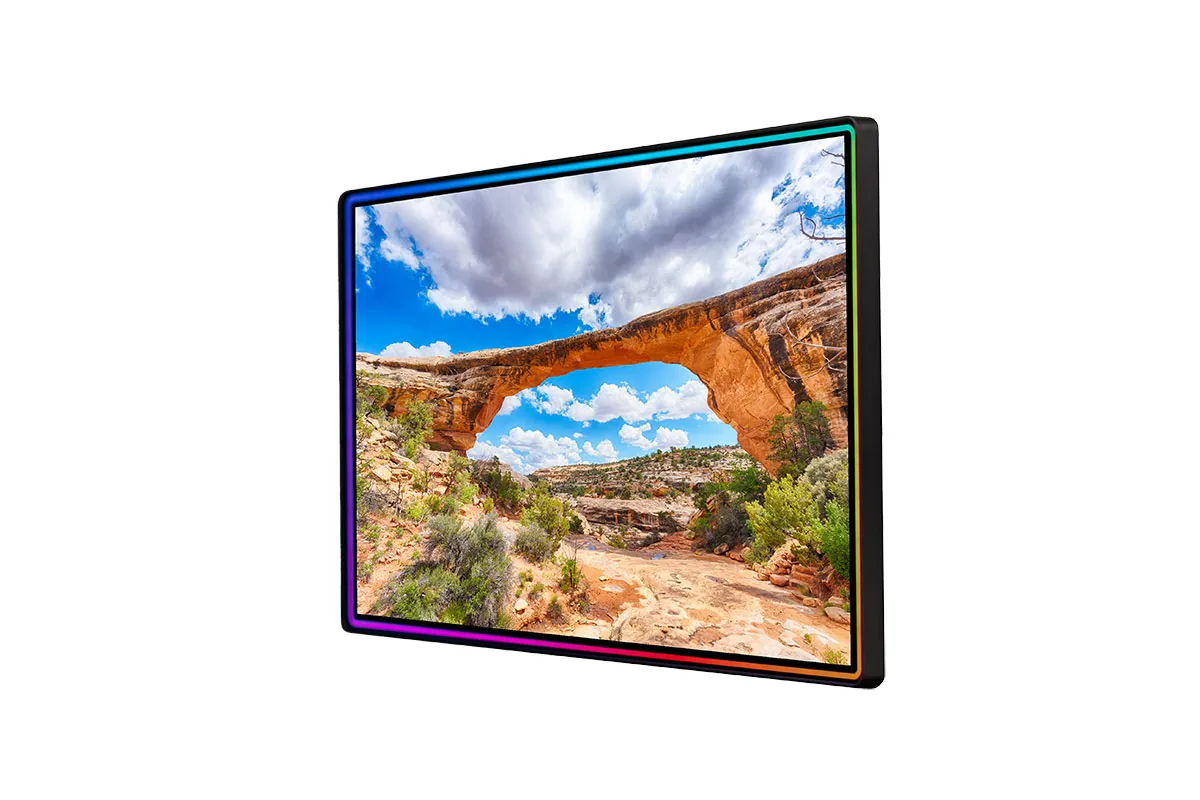

Optional FeaturesLED Lights

Measured for 402200 (Touch w/ LED), 402165 (Touch w/o LED), 402172 (No touch, w/o LED). Other item numbers in this family share the panel but vary by frame, flange, bezel and touch type — see the configuration table above.

Source: Goldfinger PCAP Products Brochure (Goldfinger LLC, (c) 2024). Published by Goldfinger, reproduced here by E & D Trading, Inc. as an authorized Goldfinger distributor.

Spec sheets and downloads

Goldfinger’s own documentation, provided for reference. Need a dimension that is not on the sheet? Call (877) 922-6707.

Already own a Goldfinger 24-Inch Infrared and PCAP Touchscreens?

We repair Goldfinger monitors that are out of warranty at $65 labor plus parts, and stock the replacement parts. Call (877) 922-6707.
