Goldfinger 27-Inch Touchscreen Configurations
27-inch line. Item 405033 is the priced PCAP extruded row with lamps. AIO, speaker, and no-touch rows are call.

Product views — 10 photos
From $649
Price shown is the price you pay — no quote form.
- 3-year manufacturer warranty from Goldfinger
- 30-day returns — no questions asked
- Out-of-warranty repair at $65 labor plus parts
- Replacement parts in stock
- Mon–Fri, 9am–5pm ET · (877) 922-6707
About the Goldfinger 27-Inch Touchscreen Configurations
Item 405033 is the priced 27-inch row: PCAP, extruded, lamps. The buy button goes to that listing. Three more rows are call-for-price: 204200 infrared all-in-one, 205005 no bezel and no touch with a standard flange, and 405034 PCAP extruded with lamps and a speaker. Do not substitute 405034's speaker into a 405033 order.
The factory table for this diagonal says 27-inch active-matrix TFT, PCAP multi-touch, USB and serial touch, 16:9, active area 597.88 by 336.31 mm, pixel pitch 0.311 by 0.311 mm, 1920 by 1080, refresh 48 Hz to 75 Hz, video HDMI, DVI-D, and VGA. Viewing is plus or minus 89 degrees. Color is 8-bit, 16.7 million. Brightness is 250 nits. Color temperature spans 8,000 K to 12,000 K. Response on the single 27-inch table is 14 ms typical and 20 ms maximum. Contrast typical is 1000:1 and the minimum cell is 700:1. Power is a 24V DC adapter with a 2.5 mm locking barrel and 100-240V input. The power-consumption cell prints 24.5 W typical and 20 W maximum, which is the sheet as published. Chassis is 644.95 by 394.16 by 60.50 mm. Weight is 18.2 lb (8.26 kg). The 27-inch climate cells are 0 C to +50 C operating, storage -20 C to +60 C, and humidity 10% to 80%. VESA is 100 by 100 mm and 200 by 200 mm. Glass is chemically treated. Approvals listed are UL and FCC. Bezel is no bezel. Frames are standard flange and extruded. Optional features are lamps, a speaker, and all-in-one.
The remote menu and its language list are printed in the on-screen-display row; that is the adjustment path, separate from the wired-remote accessory. Warranty is three-year standard from Goldfinger Inc. as manufacturer. Afterward, 27-inch bench labor is $65 plus parts. Life is not given a separate hour rating on this particular table, so none is quoted.
Configurations and prices
| Item # | Configuration | Frame | Price | Order |
|---|---|---|---|---|
| 405033 | 27" PCAP, Extruded, LED Lights | Extruded frame, LED halo | $649 | Buy now |
| 204200 | 27" IR, AIO | Standard panel | Call for pricing | Get a price |
| 205005 | 27" No Bezel, No Touch, Std Flange | Standard panel | Call for pricing | Get a price |
| 405034 | 27" PCAP, Extruded, LED Lights, Speaker | Extruded frame, LED halo | Call for pricing | Get a price |
Buy Now opens the same item on our store, BillAcceptors.us, at the same price. Configurations without a listed price are stocked to order — call (877) 922-6707. Every new unit is covered by our 30-day, no-questions-asked return policy.
Specifications
| Display Size | 27" Diagonal, Active Matrix TFT LCD |
|---|---|
| Touch Technology | PCAP (Projected Capacitive) – Multi-Touch |
| Touch Interfaces | USB and Serial |
| Aspect Ratio | 16:9 |
| Active Area | 597.88 mm (H) x 336.31 mm (V) |
| Max Resolution | 1920 (H) x 1080 (V) |
| Pixel Pitch | 0.311 mm (H) x 0.311 mm (V) |
| Other Supported Resolutions | 640x480; 800x600; 1024x768; 1280x720; 1280x800; 1280x960; 1280x1024; 1360x768; 1366x768; 1440x900; 1680x1050; 1920x1080 |
| Video Refresh Rate | 48 Hz - 75 Hz |

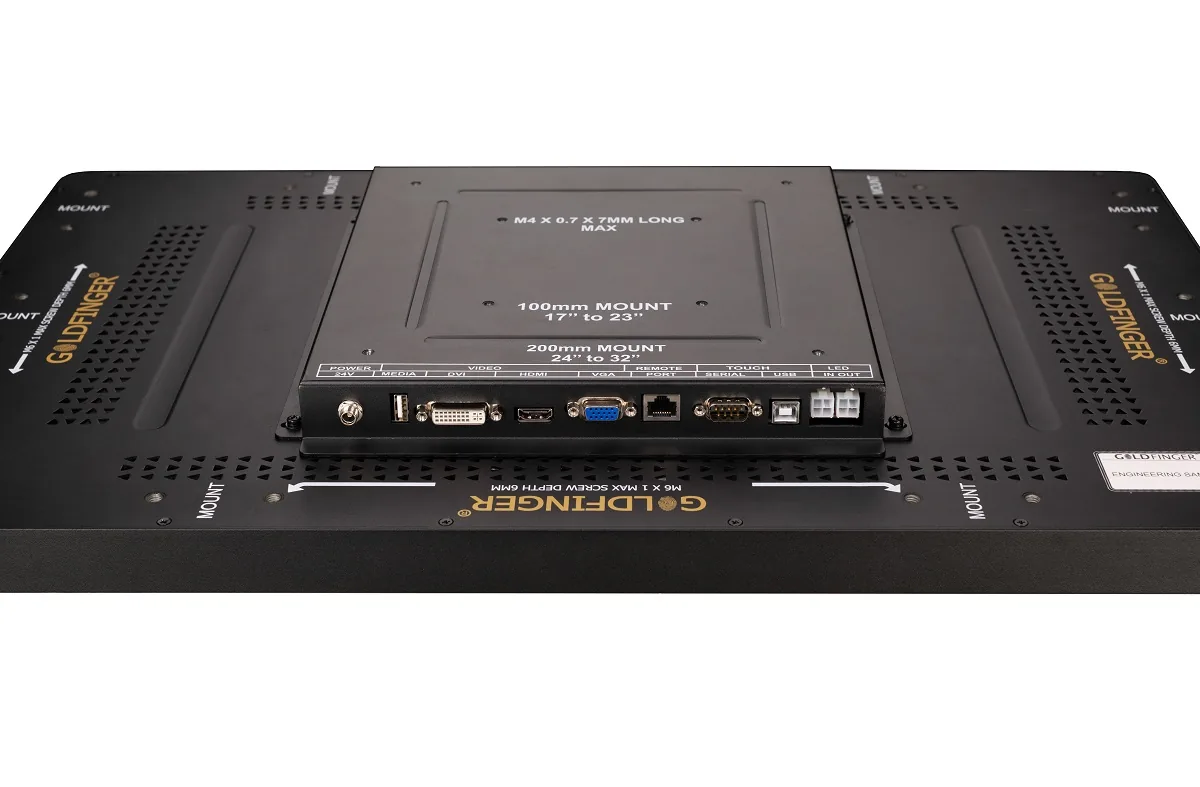

| Video I/O Ports | HDMI; DVI-D; VGA |
| Viewing Angle | Horizontal: ±89°; Vertical: ±89° |
| Number of Colors | 8-bit color depth; 16.7M colors |
| Brightness Rating | 250 nits |
| Color Temperatures | Min: 8,000K; Max: 12,000K |
| Response Time | Typ: 14ms; Max: 20ms |
| Contrast Ratio | Typ: 1000:1; Min: 700:1 |
| Power | 24V DC adapter; 2.5 mm locking barrel input; adapter input 100-240V |
| Power Consumption | Typ: 24.5W; Max: 20W (as printed by manufacturer) |
| Monitor Dimensions | 644.95 mm x 394.16 mm x 60.50 mm |
| Weight | 18.2 lbs / 8.26 kg |
| Operating Temperature | 0°C - +50°C |
| Storage Temperature | -20°C - +60°C |
| Humidity Range | 10% - 80% Relative Humidity |
| On Screen Display | Goldfinger remote: Power, Back, Left, Right, Menu, Overscan, Picture Mode, Contrast, Brightness, Color, Tint, Sharpness, Backlight, Color Temp, Aspect Ratio, Noise Reduction, Mirror, Clock, Off/On Time, Sleep Timer, OSD Language, OSD Duration. Languages: English, French, Italian, German, Spanish, Chinese, Japanese |

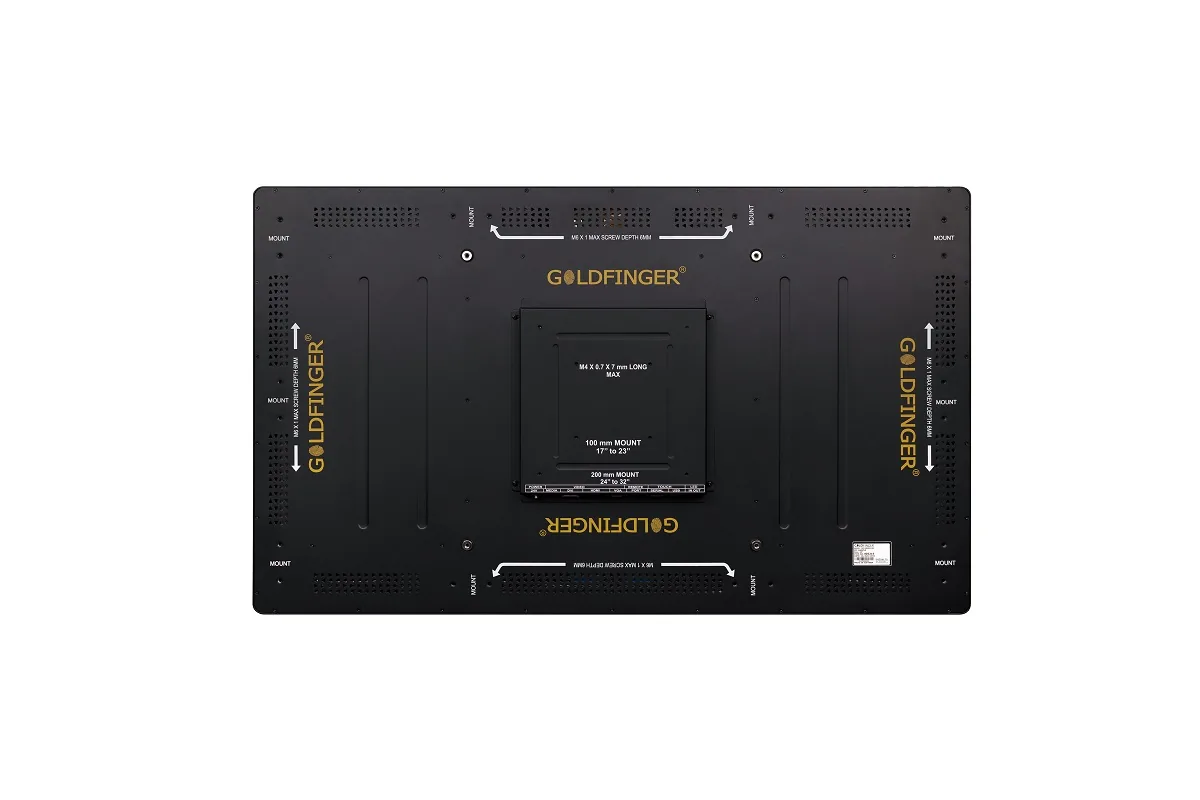

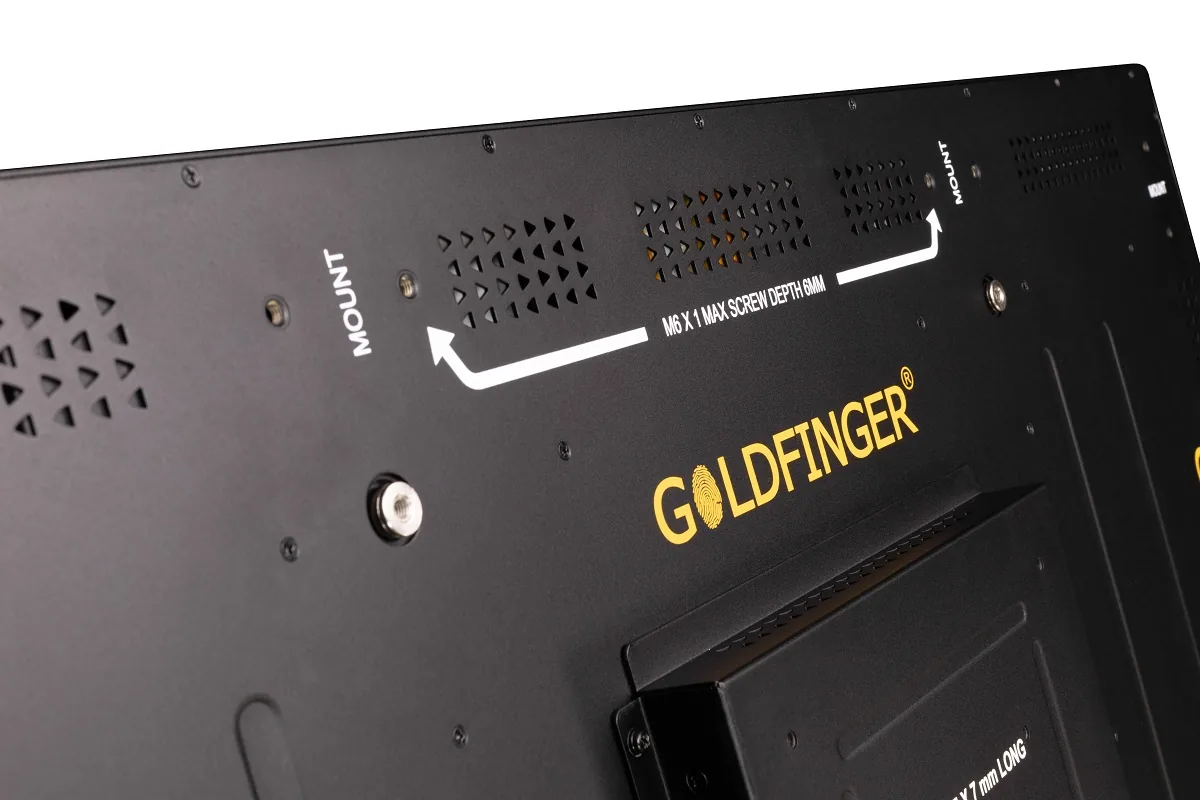

| Mounting Options | VESA 100x100 mm; VESA 200x200 mm; pre-defined perimeter mounting |
| Regulatory Approvals | United States: UL, FCC |
| Touchscreen Glass Treatment | Chemically treated for strength |
| Warranty | 3 Year Standard (manufacturer warranty, Goldfinger Inc) |
| Bezel | No Bezel |
| Frame Options | Standard Flange, Extruded |
| Optional Features | LED Lights, Speaker, All-in-One (AIO) |
Measured for 405033 (Touch w/ LED), 405005 (Touch w/o LED). Other item numbers in this family share the panel but vary by frame, flange, bezel and touch type — see the configuration table above.
Source: Goldfinger PCAP Products Brochure (Goldfinger LLC, (c) 2024); 27in Brochure Spec Sheet (Goldfinger Inc). Published by Goldfinger, reproduced here by E & D Trading, Inc. as an authorized Goldfinger distributor.
Spec sheets and downloads
Goldfinger’s own documentation, provided for reference. Need a dimension that is not on the sheet? Call (877) 922-6707.
Already own a Goldfinger 27-Inch Touchscreen Configurations?
We repair Goldfinger monitors that are out of warranty at $65 labor plus parts, and stock the replacement parts. Call (877) 922-6707.
