Goldfinger Dual 16-Inch Round PCAP Display

Two 15.7-inch rounds on one stand, item 406060, with an outer lamp ring. PCAP, 24V.

Call for pricing

Stocked to order. Call and we will quote it the same day.



  • 3-year manufacturer warranty from Goldfinger
  • 30-day returns — no questions asked
  • Out-of-warranty repair at $65 labor plus parts
  • Replacement parts in stock
  • Mon–Fri, 9am–5pm ET · (877) 922-6707

About the Goldfinger Dual 16-Inch Round PCAP Display

Item 406060 is a pair of round panels on one stand, not two loose monitors. The spec table records the display size as two 15.7-inch diagonals, each 1920 by 1080, each with a 1:1 aspect and an active area of 400.03 by 400.03 mm. Refresh is 60 Hz to 75 Hz. Brightness is 1000 cd/m2. Contrast is 800:1 minimum and 1000:1 typical. Sell it as the dual 16-inch round family, and keep the 15.7-inch measured diagonal in the quote so the cabinet artist uses the table, not the marketing inch.

Each panel is 10-point PCAP. Response for each round in the pair is 8 ms typical and 10 ms maximum. Viewing is plus or minus 85 degrees both ways. Color is 16.7 million at 8-bit. The connector list is HDMI 2.1, VGA, DisplayPort, USB-A touch, serial touch, and 24V DC, with 100-210V also in the power cell. An outer lamp ring runs around both displays. The stand is included; it is not a separate accessory SKU. Operating systems on the sheet are Windows, MacOS, and Linux. Life is 70,000+ hours. Temperature is -20 C to +60 C. The part-number cell is 406060.

There is no second priced configuration and no weight or wattage cell on this dual table, so those are not borrowed from the single round. The warranty cell is three years. That warranty is Goldfinger's manufacturer warranty. If 406060 is past it, the bench quote is $65 labor plus parts, not a flat screen price. Phone orders only: this item has no buy link on the sheet. Ask for best prices if a location wants more than one dual stand.

Configurations and prices

Goldfinger Dual 16-Inch Round PCAP Display configurations, item numbers and prices
Item #Configuration FramePrice Order
40606016" Dual Round with StandExtruded frame, LED haloCall for pricingGet a price

Buy Now opens the same item on our store, BillAcceptors.us, at the same price. Configurations without a listed price are stocked to order — call (877) 922-6707. Every new unit is covered by our 30-day, no-questions-asked return policy.

Specifications

Goldfinger Dual 16-Inch Round PCAP Display specifications
Display Size(2) 15.7" Diagonal
Resolution(2) 1920 x 1080 (Full HD)
Refresh Rate60Hz - 75Hz
Brightness1000 cd/m²
Contrast RatioMin: 800:1 Typ: 1000:1
Touch TechnologyProjected Capacitive (PCAP)
Touch Points10-point multi-touch
Response TimeTyp: 8ms Max: 10ms
Viewing AngleH: ±85 V: ±85°
Color Depth16.7M colors; 8-bit
ConnectivityHDMI 2.1, VGA, DisplayPort, USB-A Touch, Serial Touch, 24VDC Power Input
LED LightingOuter perimeter ring (around both displays)
StandIntegrated mounting stand included
Operating SystemWindows, MacOS, and Linux Compatible
Operating Life70,000+ hours
Warranty3 Years
Part Number406060
Aspect Ratio1:1 (per display)
Active Area400.03mm (H) x 400.03mm (V) per display
Power24V DC; 100-210V
Operating Temp.-20°C - +60°C

Specifications are Goldfinger’s published figures for this family. Individual item numbers vary by frame, flange and touch type — see the configuration table above.

More views

Rear three-quarter of the dual round pair and the stand column
Angled front of both round screens with the stand base in view

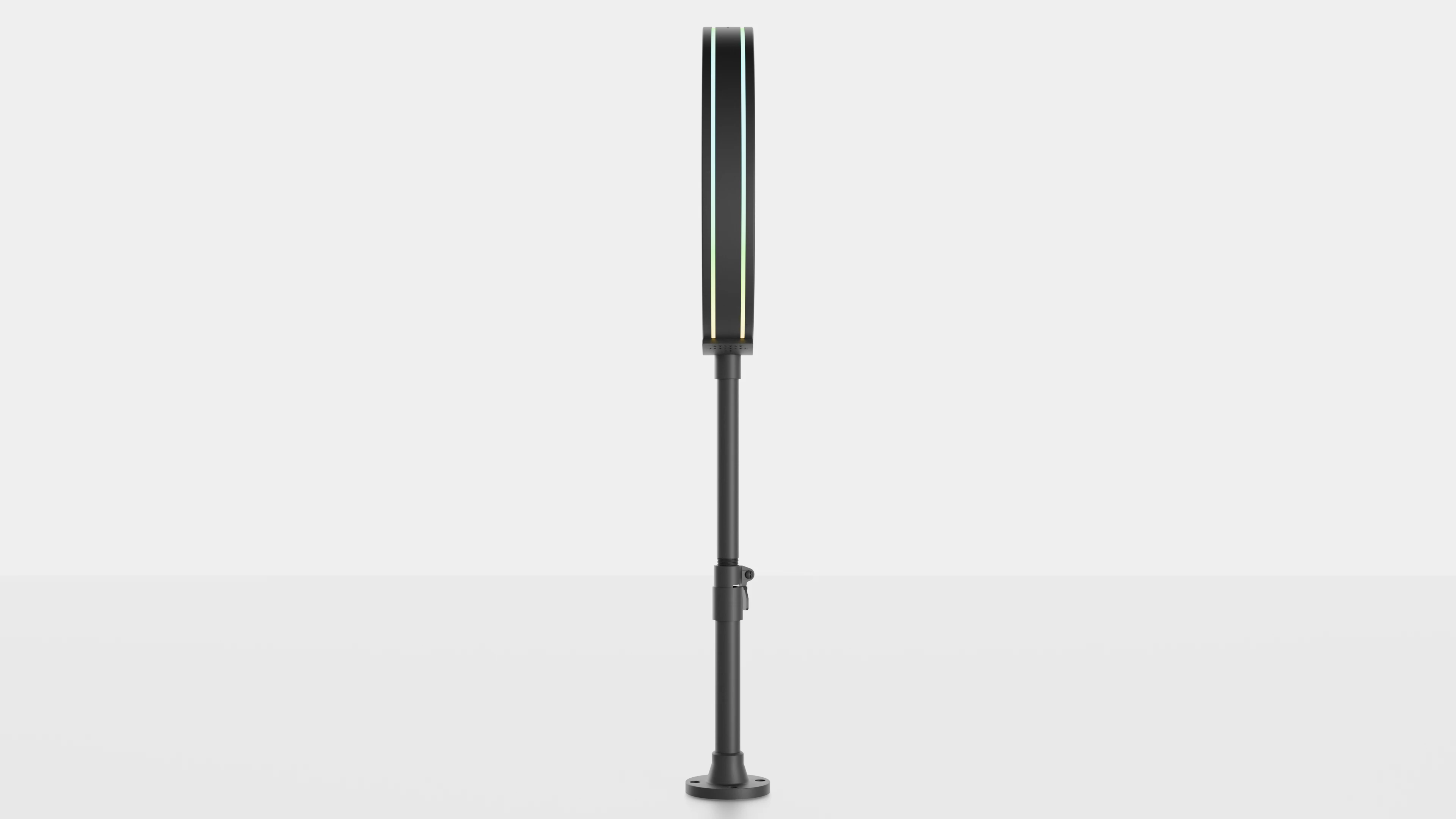

Side of the dual round assembly, one disc and the stand depth
