Authorized Goldfinger distributor 3 configurations

Goldfinger 15.6-Inch PCAP Touchscreen Line

15.6-inch PCAP family. Item 200610 is the priced standard-panel row; 400610 is extruded.

From $375

Price shown is the price you pay — no quote form.



  • 3-year manufacturer warranty from Goldfinger
  • 30-day returns — no questions asked
  • Out-of-warranty repair at $65 labor plus parts
  • Replacement parts in stock
  • Mon–Fri, 9am–5pm ET · (877) 922-6707

About the Goldfinger 15.6-Inch PCAP Touchscreen Line

The 15.6-inch page is a PCAP family, not a single SKU. Item 200610 is the standard-panel row with a published price. Item 200611 is the 1080p standard panel and is call-for-price. Item 400610 is the extruded-frame PCAP, also call-for-price. Tell the counter which of those three you want; the frame is the difference, not the touch method. Every row on this page is projected-capacitive.

Read the size table before you promise a cabinet spec. It lists a 15.6-inch diagonal, 16:9, an active area of 344.23 by 193.54 mm, 1920 by 1080 at 60 Hz, HDMI plus DVI-D plus VGA, viewing angles of plus or minus 85 degrees horizontal and plus or minus 80 degrees vertical, 6-bit color at 16.7 million colors, 400 nits, response of 8 ms typical and 13 ms maximum, contrast of 500:1 typical and 350:1 minimum, and 12V DC. The chassis is 388.2 by 238.5 by 43.5 mm, and the operating range is 0 C to +60 C. Frame choices on the table are standard panel and extruded.

That 12-volt rail is specific to this size; do not power it from a 24-volt Goldfinger pack. The warranty cell says three-year standard, manufacturer warranty, Goldfinger Inc. In-warranty units go back to Goldfinger. Out-of-warranty 15.6-inch work on our bench is $65 labor plus parts. The table does not list a USB touch port next to the video ports, so order from the video I/O row as printed rather than from a different size's connector list.

Configurations and prices

Goldfinger 15.6-Inch PCAP Touchscreen Line configurations, item numbers and prices
Item #Configuration FramePrice Order
20061015.6" PCAP Touch, Standard PanelStandard panel$375 $390 Buy now
20061115.6" PCAP Touch, 1080p PanelStandard panelCall for pricingGet a price
40061015.6" PCAP, Extruded FrameExtruded frame, LED haloCall for pricingGet a price

Buy Now opens the same item on our store, BillAcceptors.us, at the same price. Configurations without a listed price are stocked to order — call (877) 922-6707. Every new unit is covered by our 30-day, no-questions-asked return policy.

Specifications

Goldfinger 15.6-Inch PCAP Touchscreen Line manufacturer specifications
Display Size15.6" Diagonal
Touch TechnologyPCAP (Projected Capacitive) – Multi-Touch
Aspect Ratio16:9
Active Area344.23 mm (H) x 193.54 mm (V)
Max Resolution1920 (H) x 1080 (V)
Video Refresh Rate60 Hz
Video I/O PortsHDMI; DVI-D; VGA
Viewing AngleHorizontal: ±85°; Vertical: ±80°
Number of Colors6-bit depth; 16.7M colors
Brightness Rating400 nits
Response TimeTyp: 8ms; Max: 13ms
Contrast RatioTyp: 500:1; Min: 350:1
Power12V DC
Monitor Dimensions388.2 mm x 238.5 mm x 43.5 mm
Operating Temperature0°C - +60°C
Warranty3 Year Standard (manufacturer warranty, Goldfinger Inc)
Frame OptionsStandard Panel, Extruded Frame

Measured for 200610 (Touch). Other item numbers in this family share the panel but vary by frame, flange, bezel and touch type — see the configuration table above.

Source: Goldfinger PCAP Products Brochure (Goldfinger LLC, (c) 2024). Published by Goldfinger, reproduced here by E & D Trading, Inc. as an authorized Goldfinger distributor.

Spec sheets and downloads

Goldfinger’s own documentation, provided for reference. Need a dimension that is not on the sheet? Call (877) 922-6707.

More views

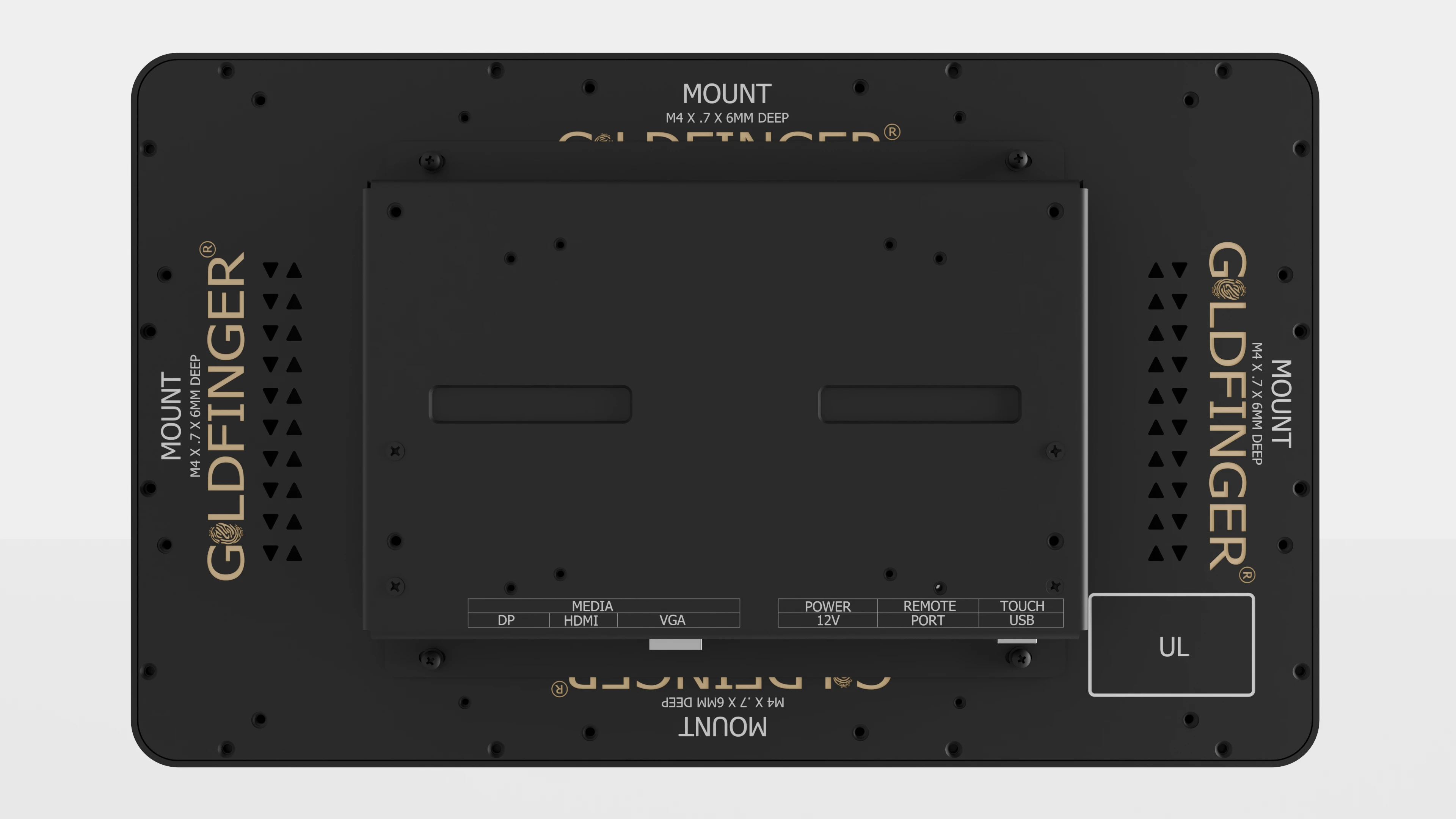

Rear of the 15.6-inch PCAP chassis with the port edge along one side

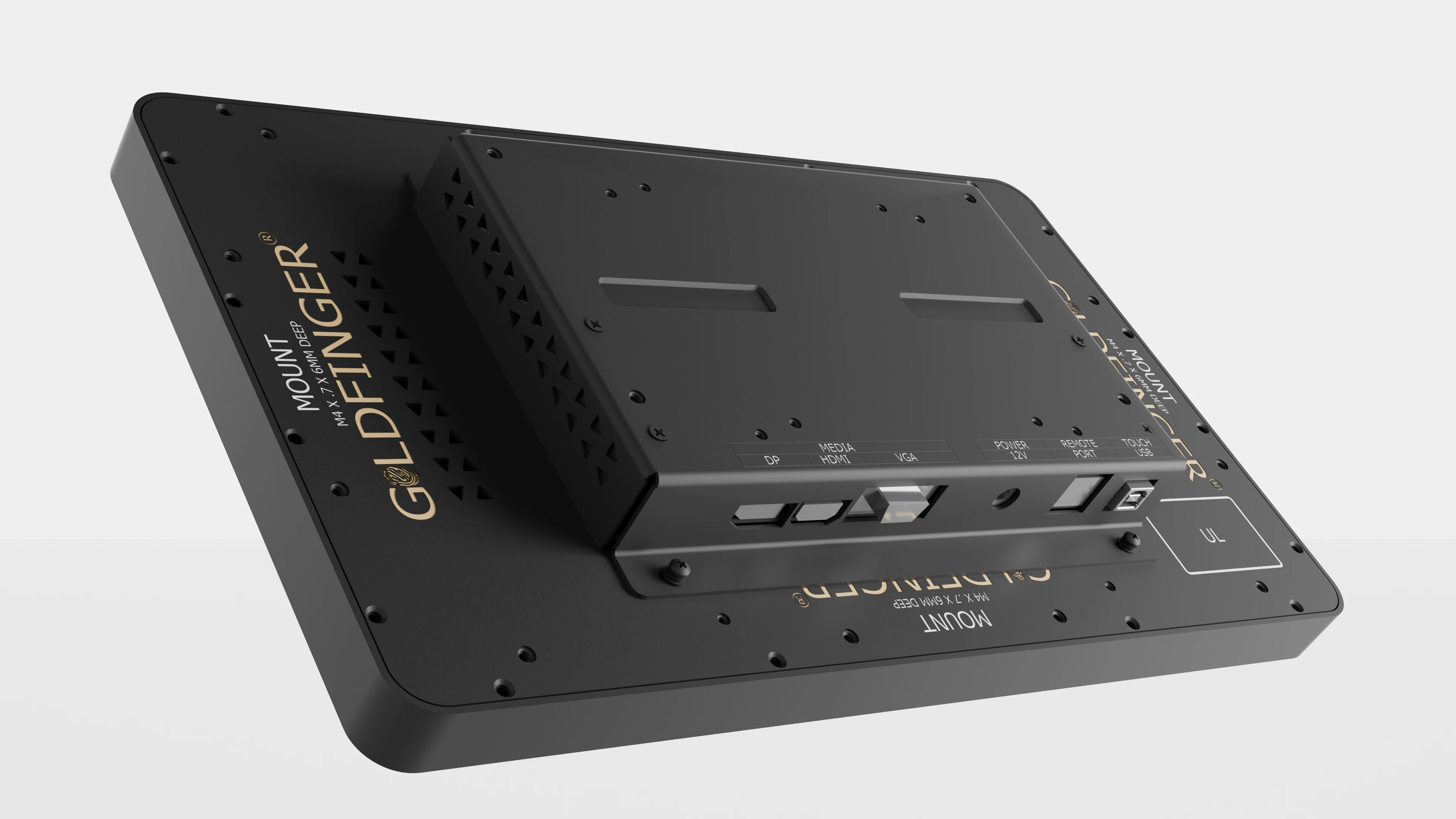

Angled rear of the 15.6-inch PCAP panel showing how shallow the box is

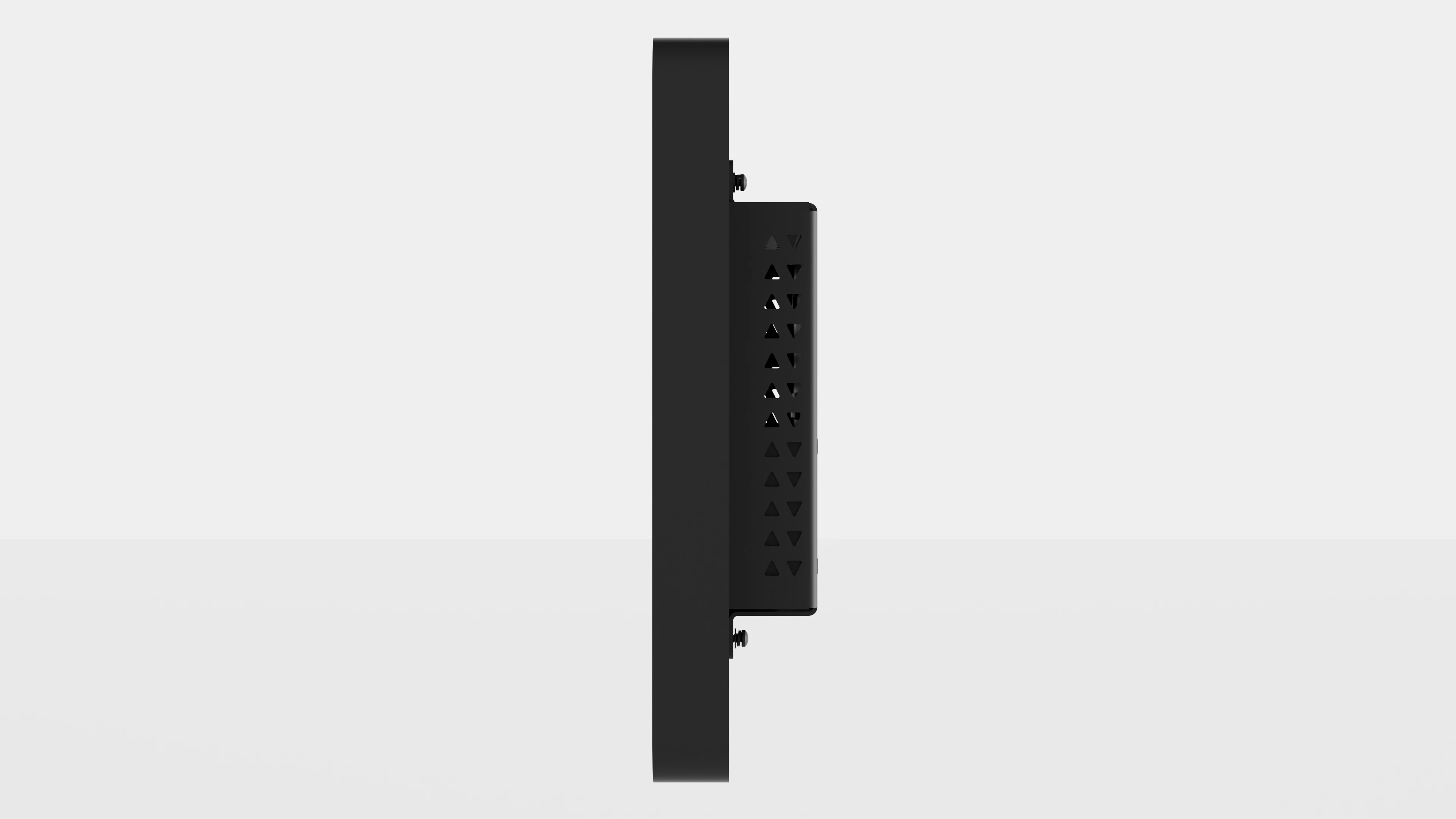

Side profile of the 15.6-inch PCAP open frame

Already own a Goldfinger 15.6-Inch PCAP Touchscreen Line?

We repair Goldfinger monitors that are out of warranty at $65 labor plus parts, and stock the replacement parts. Call (877) 922-6707.
