Goldfinger 16-Inch Round PCAP Display
Round family sold as 16-inch. Spec table measures a 15.7-inch diagonal, 1000 cd/m2, PCAP.

From $1,240
Price shown is the price you pay — no quote form.
- 3-year manufacturer warranty from Goldfinger
- 30-day returns — no questions asked
- Out-of-warranty repair at $65 labor plus parts
- Replacement parts in stock
- Mon–Fri, 9am–5pm ET · (877) 922-6707
About the Goldfinger 16-Inch Round PCAP Display
This family is the round Goldfinger display sold as 16-inch. The spec table's display-size cell measures 15.7 inches on the diagonal, so quote both: the catalog family is 16-inch round, and the measured diagonal is 15.7 inches. Aspect ratio is 1:1. Active area is 400.03 by 400.03 mm. Resolution is 1920 by 1080, refresh 60 Hz to 75 Hz, brightness 1000 cd/m2, contrast minimum 800:1 and typical 1000:1.
Touch on the table is projected-capacitive, 10-point. Response on the single round is 8 ms typical and 10 ms maximum. Viewing is plus or minus 85 degrees horizontal and vertical. Color is 16.7 million, 8-bit. Ports are HDMI 2.1, VGA, DisplayPort, USB-A touch, serial touch, and a 24V DC input, with the power cell also listing 100-210V. Draw is 39.3 W typical and 49.5 W maximum. Chassis size is 478.4 by 478.4 by 66.27 mm. Weight is 13 lb, 5.9 kg. Operating range is -20 C to +60 C. Life is 70,000+ hours. Operating systems listed are Windows, MacOS, and Linux.
Two item numbers sit on the page. 405050 is the PCAP round and has no retail price here, so it is a phone order. GF16RND-NT is a provisional no-touch number with a 100-piece minimum; the badge on that row means the Goldfinger item number is not final. Do not treat GF16RND-NT as if the PCAP glass spec were a second measured table. Warranty on the sheet is three years from Goldfinger the manufacturer. A round that is out of that window can be booked at $65 labor plus parts.
Configurations and prices
| Item # | Configuration | Frame | Price | Order |
|---|---|---|---|---|
| GF16RND-NT provisional | 16" Round, No Touch (MOQ 100) | Extruded frame, LED halo | $1,240 | Order by phone |
| 405050 | 16" Round | Extruded frame, LED halo | Call for pricing | Get a price |
Buy Now opens the same item on our store, BillAcceptors.us, at the same price. Configurations without a listed price are stocked to order — call (877) 922-6707. Every new unit is covered by our 30-day, no-questions-asked return policy.
Specifications
| Display Size | 15.7" Diagonal |
|---|---|
| Resolution | 1920 x 1080 (Full HD) |
| Refresh Rate | 60Hz - 75Hz |
| Brightness | 1000 cd/m² |
| Contrast Ratio | Min: 800:1 Typ: 1000:1 |
| Touch Technology | Projected Capacitive (PCAP) |
| Touch Points | 10-point multi-touch |
| Response Time | Typ: 8ms Max: 10ms |
| Viewing Angle | H: ±85 V: ±85° |
| Color Depth | 16.7M colors; 8-bit |
| Connectivity | HDMI 2.1, VGA, DisplayPort, USB-A Touch, Serial Touch, 24VDC Power Input |
| Operating System | Windows, MacOS, and Linux Compatible |
| Operating Life | 70,000+ hours |
| Warranty | 3 Years |
| Aspect Ratio | 1:1 |
| Active Area | 400.03mm (H) x 400.03mm (V) |
| Power | 24V DC; 100-210V |
| Power Consumption | Typ: 39.3W Max: 49.5W |
| Monitor Dimension | 478.4mm x 478.4mm x 66.27mm |
| Weight | 13 lbs. / 5.9kg |
| Operating Temp. | -20°C - +60°C |
Specifications are Goldfinger’s published figures for this family. Individual item numbers vary by frame, flange and touch type — see the configuration table above.

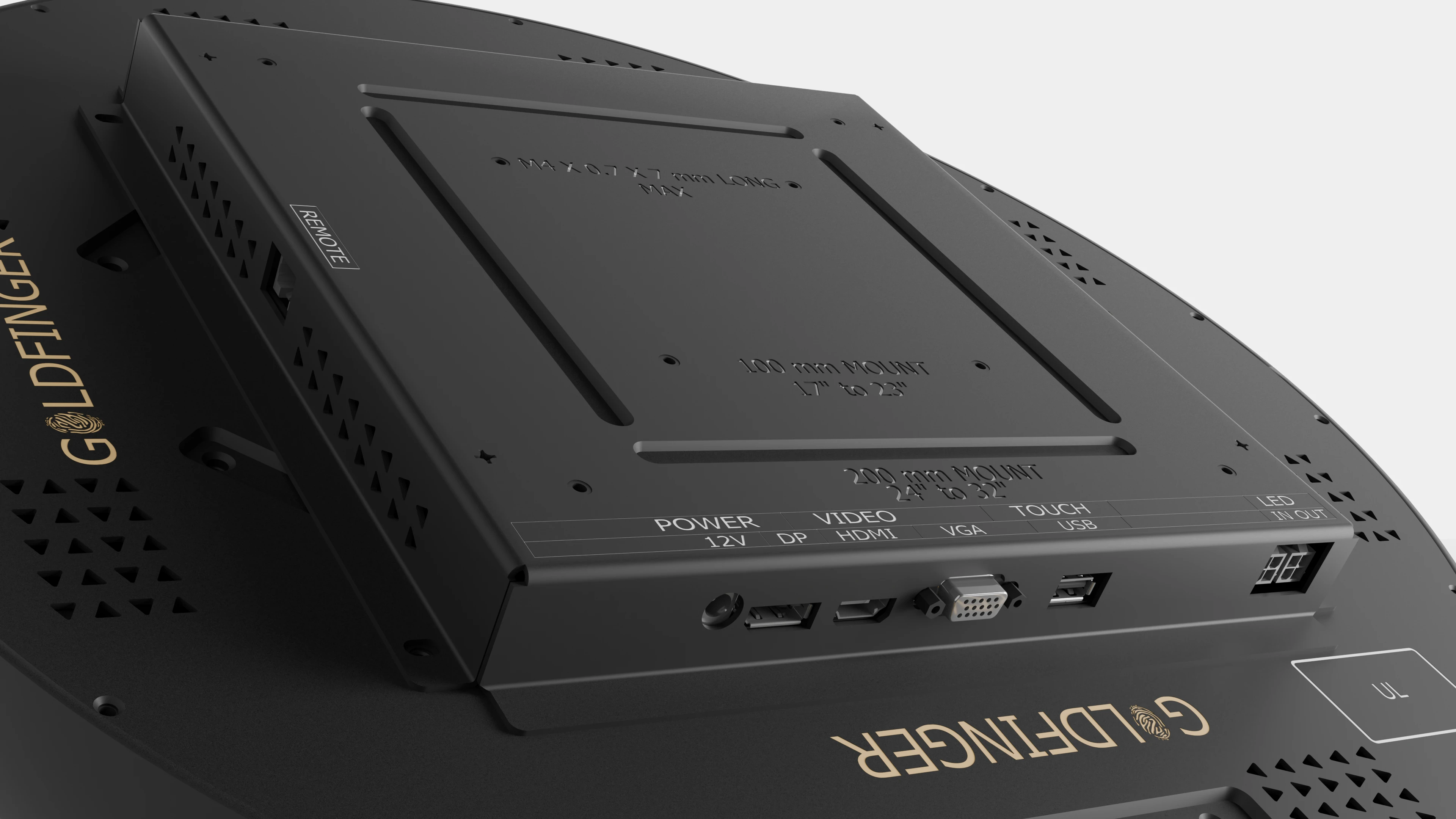

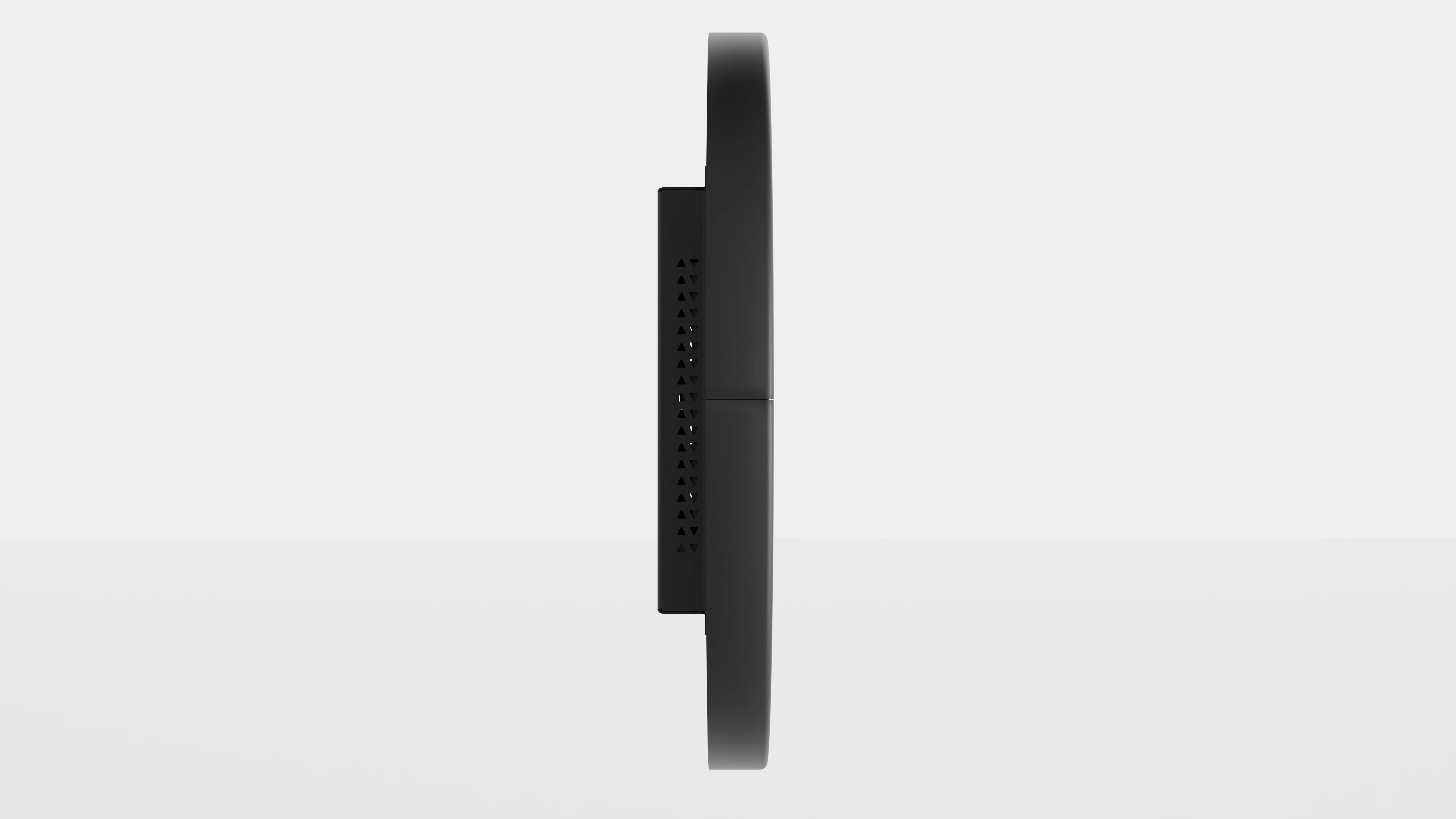

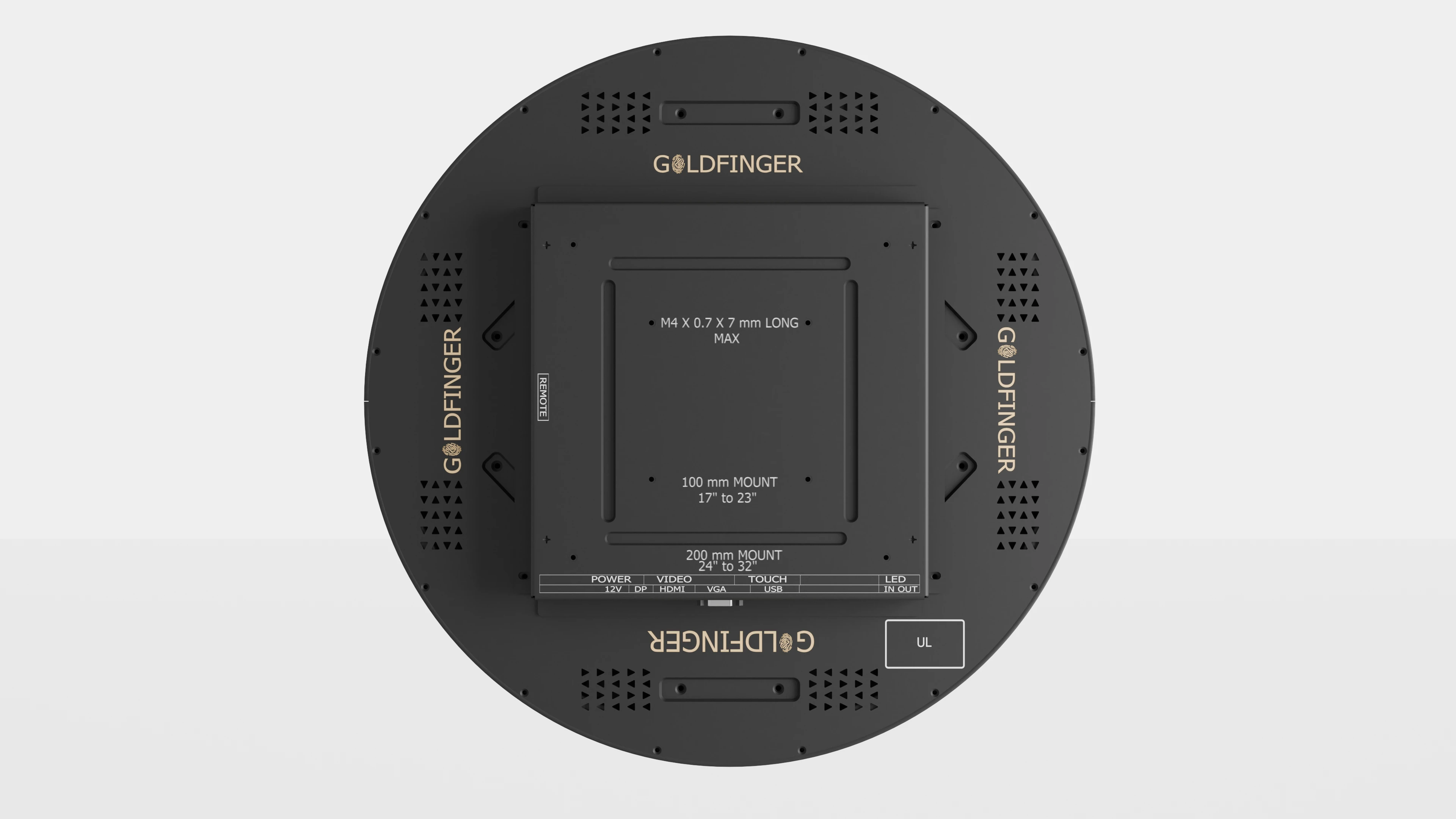

More views



Already own a Goldfinger 16-Inch Round PCAP Display?
We repair Goldfinger monitors that are out of warranty at $65 labor plus parts, and stock the replacement parts. Call (877) 922-6707.
